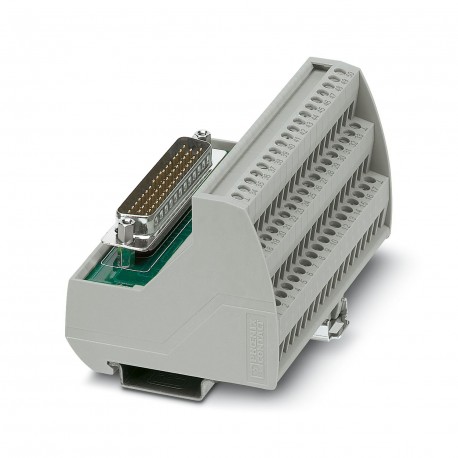

PHOENIX CONTACT VIP-3/SC/D50SUB/M VIP-3/SC/D50SUB/M 2315159 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP-3/SC/D50SUB/M 2315159 PHOENIX CONTACT Interface module

VIP-3/SC/D50SUB/M

2315159

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, with screw connection and D-SUB miniature male connector, for mounting on NS 35 symmetrical rails, number of poles: 50 VARIOFACE module, with screw connection and male D-Subminiature pin strip, for mounting on NS 35 rails, 50-pos.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE Professional
Number of positions50
Data management status
Article revision11
Insulation characteristics
Overvoltage categoryII
Pollution degree2
Electrical properties
Nominal voltage UN25 V AC
60 V DC
Max. current carrying capacity per branch2 A
Rated surge voltage1.2 kV
Connection data
Field level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Controller level
Connection methodD-SUB pin strip
Number of connections1
Number of positions50
Signaling
Status displayno
Status display presentNo
Dimensions
Item dimensions
Width98.2 mm
Height69 mm
Depth62 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Housing insulation materialPolyamide PA non-reinforced
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsIEC 60664
DIN EN 50178
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2315159 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 50
Rated voltage (EF000228) 25 V
Rated current (EF000227) 2 A
Depth (EF000049) 62 mm
Width (EF000008) 98.2 mm
Height (EF000040) 69 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
