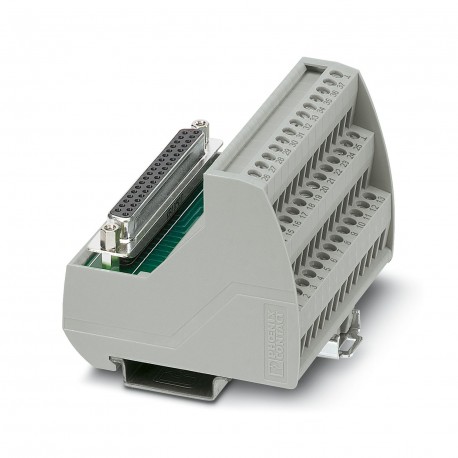

PHOENIX CONTACT VIP-3/SC/D37SUB/F VIP-3/SC/D37SUB/F 2315191 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP-3/SC/D37SUB/F 2315191 PHOENIX CONTACT Interface module

VIP-3/SC/D37SUB/F

2315191

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, with screw connection and miniature female connector D-SUB, for mounting on symmetrical rails NS 35, number of poles: 37 VARIOFACE module, with screw connection and D-SUB 37 plug-in connection, for installation on symmetrical NS 35 rails

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2315191
Packing unit1 pc
Catalog pagePage 571 (C-5-2017)
GTIN4046356312943
Weight per Piece (excluding packing)178.000 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width72.7 mm
Height69 mm
Depth62 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2 A
Number of positions37
Status displayNo
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions37

Standards and Regulations

Connection in acc. with standardCSA
Standards/regulationsIEC 60664
DIN EN 50178
Rated surge voltage1.2 kV
Degree of pollution2
Overvoltage categoryII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2315191 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 37
Rated voltage (EF000228) 25 V
Rated current (EF000227) 2 A
Depth (EF000049) 62 mm
Width (EF000008) 72.7 mm
Height (EF000040) 69 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
