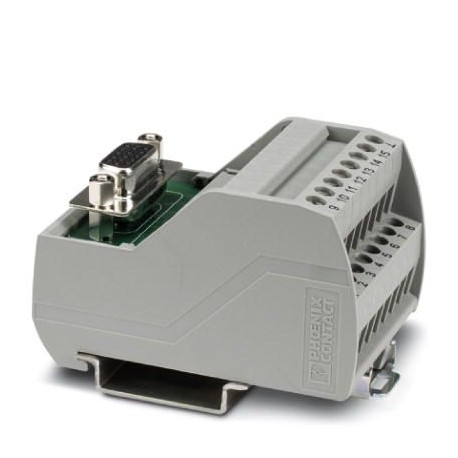

VIP-2/SC/HD15SUB/F 2322401 PHOENIX CONTACT Interface module

VIP-2/SC/HD15SUB/F

2322401

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, with screw connection and high-density D-SUB miniature female connector, for mounting on NS 35, number of poles: 15, width: 44.9 mm

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2322401
Packing unit1 pc
Catalog pagePage 576 (C-5-2017)
GTIN4046356451703
Weight per Piece (excluding packing)108.100 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width44.9 mm
Height65.5 mm
Depth45.1 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)1 A
Number of positions15
Status displayNo
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of positions15

Connection data for connection 2

Connection nameController level
Connection methodHigh-density D-SUB socket strip
Number of connections1
Number of positions15

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsEN 50178

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2322401 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 15
Rated voltage (EF000228) 25 V
Rated current (EF000227) 1 A
Depth (EF000049) 45.1 mm
Width (EF000008) 44.9 mm
Height (EF000040) 65.5 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
