VIP-2/SC/D 9SUB/F/LED 2322197 PHOENIX CONTACT Interface module
VIP-2/SC/D 9SUB/F/LED
2322197
PHOENIX CONTACT
1 Pcs.
Interface module

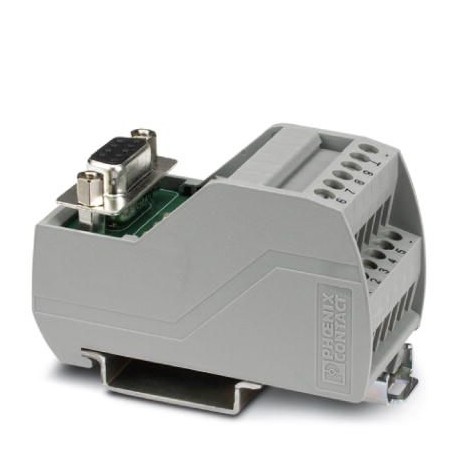

VARIOFACE module, with screw connection and D-SUB miniature female connector, for mounting on NS 35 symmetrical rails, with LED, number of poles: 9
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2322197 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 571 (C-5-2017) |
| GTIN | 4046356451819 |
| Weight per Piece (excluding packing) | 90.200 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 24 V DC |
|---|---|
| Max. perm. current (per branch) | 2.5 A |
| Number of positions | 9 |
| Status display | LED |
| Mounting position | any |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 9 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | IEC 60664 |
| DIN EN 50178 | |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
