View larger
Images are for illustrative purposes only. Please refer to data sheet for details

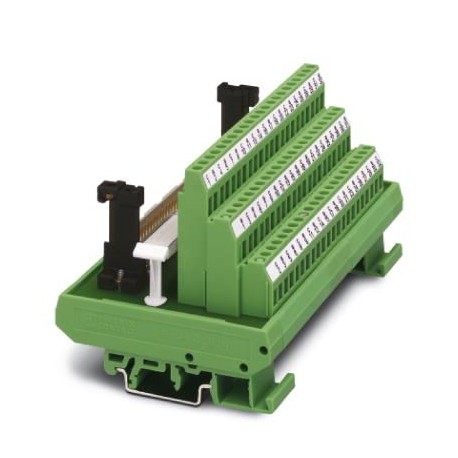

UMKS- C64M-VS 2970565 PHOENIX CONTACT Interface module
UMKS-C64M-VS
2970565
PHOENIX CONTACT
1 Pcs.
Interface module
VARIOFACE module, for IEC 603/ DIN 41612 connectors, C construction, 64 poles, equipped in rows a, c, with male connector, screw-on cable housing
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2970565 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 592 (C-7-2015) |
| GTIN | 4017918087753 |
| Weight per Piece (excluding packing) | 274.520 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 125 V AC/DC |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Number of positions | 64 |
| Mounting position | any |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IEC 603/DIN 41612 connection |
| Number of positions | 64 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| IEC 60664 | |
| Rated insulation voltage | 125 V |
| Rated surge voltage | 1.2 kV (Functional insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 64 |
| Rated voltage (EF000228) | 125 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 70.87 mm |
| Width (EF000008) | 134.8 mm |
| Height (EF000040) | 77 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
