PHOENIX CONTACT UMK-RJ45/S/8PTDA UMK-RJ45/S/8PTDA 2900682 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UMK-RJ45/S/8PTDA 2900682 PHOENIX CONTACT Passive module

UMK-RJ45/S/8PTDA

2900682

PHOENIX CONTACT

1 Pcs.

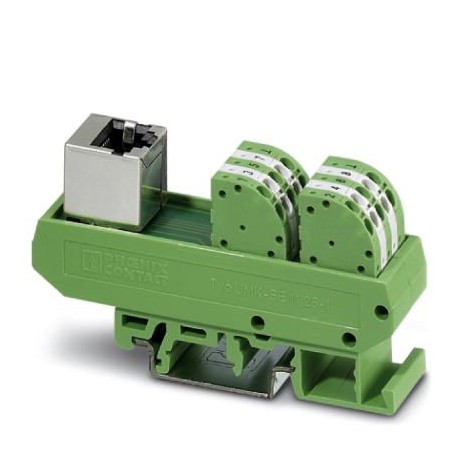

Passive module VARIOFACE module for the connection of an RJ45 female connector with spring-loaded double terminal blocks in direct connection technology.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2900682
Packing unit1 pc
Catalog pagePage 320 (IF-2011)
GTIN4046356524353
Weight per Piece (excluding packing)57.000 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width25 mm
Height91 mm
Depth51 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
50 V DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)4 A
Number of positions8
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Number of positions10

Connection data for connection 2

Connection nameController level
Connection methodRJ45 socket
Number of connections1
Number of positions8

Standards and Regulations

DesignationAir clearances and creepage distances
Standards/regulationsDIN EN 50178: 1998-04
Rated insulation voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2900682 PLC's (EC002780)
Feature Name Feature Value
Number of poles (EF001391) 8
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 42.8 mm
Width (EF000008) 22.4 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
