UMK-PVB 6

2972136

PHOENIX CONTACT

1 Pcs.

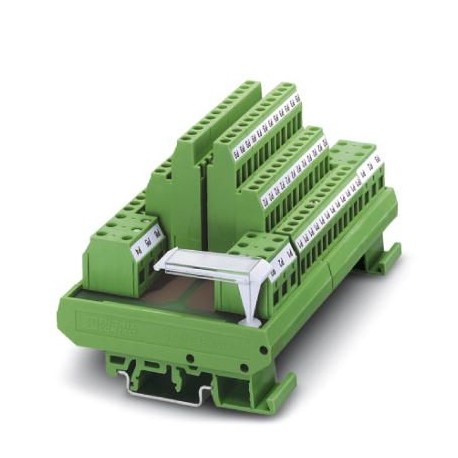

Potential distributors VARIOFACE module, with six equipotential connecting rods (P1, P2, P3, P4, P5, P6) for potential distribution, for mounting on NS 35/7.5 or NS 32

Automation > Distributor assembly terminal blocks
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2972136
Packing unit1 pc
Catalog pagePage 599 (C-5-2017)
GTIN4017918088613
Weight per Piece (excluding packing)398.200 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width123.8 mm
Height77 mm
Depth72 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Nominal voltage UN250 V AC/DC
Max. current carrying capacity per branch16 A
Total current16 A (per potential)
Potential connectionsPer potential (P1...P6) 2 power/12 distributor terminal blocks
Mounting positionany
Standards/regulationsIEC 60664
DIN EN 50178
Rated surge voltage2.2 kV (Functional insulation)
Rated insulation voltage250 V
Degree of pollution2
Overvoltage categoryII
Degree of protectionIP20

Connection data, supply

Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 10
Number of connections6

Connection data, distribution

Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage250 V
Rated surge voltage2.2 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2972136 Power distribution systems (EC001894)
Feature Name Feature Value
Height (EF000040) 77 mm
Width (EF000008) 124 mm
Depth (EF000049) 71 mm
Max. rated current (EF007926) 16 A
Number of poles (EF001391) 6
Conductor cross section flexible (fine-strand) with cable end sleeve (EF003460) 0.2 mm²
Conductor cross section solid (solid, stranded) (EF003462) 0.2 mm²
With PE-rail (EF007967) No
With N-rail (EF007963) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
