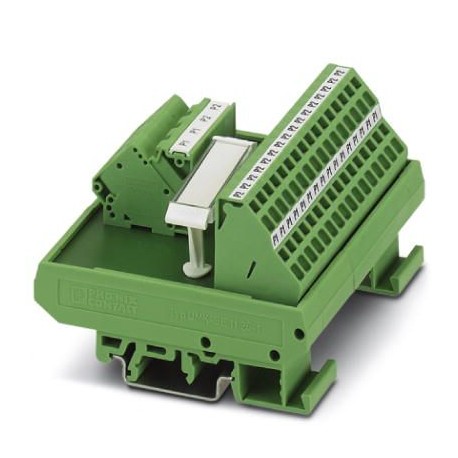

PHOENIX CONTACT UMK-PVB 2/32/ZFKDS UMK- PVB 2/32/ZFKDS 2302379 PHOENIX CONTACT Potential distributors View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UMK- PVB 2/32/ZFKDS 2302379 PHOENIX CONTACT Potential distributors

UMK-PVB 2/32/ZFKDS

2302379

PHOENIX CONTACT

1 Pcs.

Potential distributors VARIOFACE module, with two potential bars (P1, P2) for potential distribution, for mounting on NS 35/7.5 or NS 32. Module width: 90 mm

Automation > Distributor assembly terminal blocks
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2302379
Packing unit1 pc
Catalog pagePage 323 (IF-2011)
GTIN4017918880521
Weight per Piece (excluding packing)133.760 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width90 mm
Height77 mm
Depth52 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Nominal voltage UN250 V AC/DC
Max. current carrying capacity per branch17 A
Total current32 A (per potential)
Mounting positionany
Standards/regulationsIEC 60664
DIN EN 50178
Rated surge voltage2.3 kV
Rated insulation voltage260 V
Degree of pollution2
Overvoltage categoryII
Degree of protectionIP20

Connection data, supply

Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 10
Number of connections2

Connection data, distribution

Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of connections32

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage260 V
Rated surge voltage2.3 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2302379 Power distribution systems (EC001894)
Feature Name Feature Value
Height (EF000040) 77 mm
Width (EF000008) 90 mm
Depth (EF000049) 51.5 mm
Max. rated current (EF007926) 32 A
Number of poles (EF001391) 2
Conductor cross section flexible (fine-strand) with cable end sleeve (EF003460) 0.2 mm²
Conductor cross section solid (solid, stranded) (EF003462) 0.2 mm²
Number of clamp positions per pole (EF002519) 16
With PE-rail (EF007967) No
With N-rail (EF007963) No
