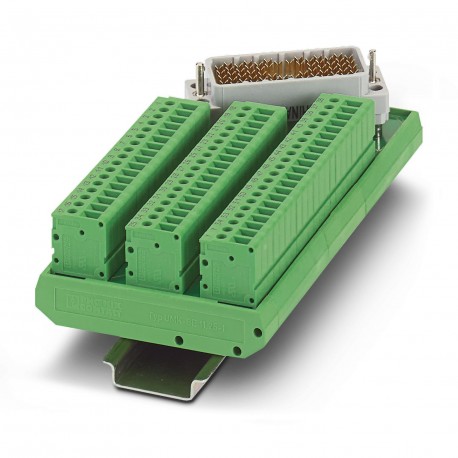

UMK- EC56/FRONT 2,5V/R 2976161 PHOENIX CONTACT Interface module

UMK-EC56/FRONT 2,5V/R

2976161

PHOENIX CONTACT

1 Pcs.

Interface module Interconnect module, connection 1: Screw connection, connection 2: EDAC / ELCO 1x 56-pole sprat (ELCO type 8016 sprat / EDAC type 516 sprat, right) Signal Transfer Module, Connection 1: EDAC / ELCO 1x 56-Pole Sprat (ELCO Sprat Type 8016/EDAC Sprat Type 516, Right), Connection 2: 56-Pole Screw Connection

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2976161
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 579 (C-5-2017)
GTIN4017918089238
Weight per Piece (excluding packing)4.130 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width77 mm
Height146.3 mm
Depth47.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)1.5 A
Max. permissible current (all branches)28 A (56 branches with 0.5 A each)
Number of positions56
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length9 mm
Screw threadM2,5
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG26 ... 16

Connection data for connection 2

Connection nameController level
Connection methodELCO connector
Number of connections1
Number of positions56
NotePin strip, Type 8016, right

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage85 V
Rated surge voltage0.8 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet
