View larger
Images are for illustrative purposes only. Please refer to data sheet for details

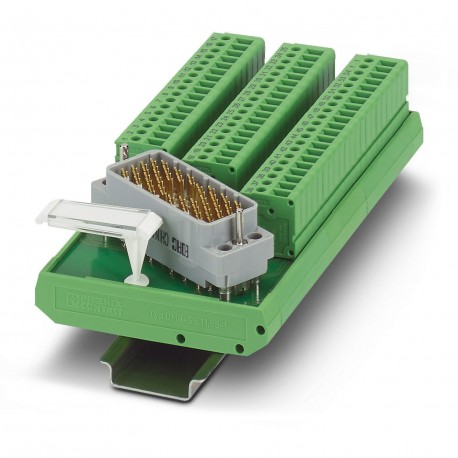

UMK- EC56/FRONT 2,5V/L 2976158 PHOENIX CONTACT Interface module
UMK-EC56/FRONT 2,5V/L
2976158
PHOENIX CONTACT
1 Pcs.
Interface module
Interconnect module, connection 1: Screw connection, connection 2: EDAC / ELCO 1x 56-pole sprat (ELCO type 8016 sprat / EDAC sprat type 516, left)
Termination board, connection 1: EDAC / ELCO pin strip 1x 56-position (ELCO pin strip type 8016/EDAC pin strip type 516, left), connection 2: Screw connection 56-position
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Interface module |
| Product family | VARIOFACE |
| Number of positions | 56 |
| Operating mode | 100% operating factor |
| Data management status | |
| Article revision | 13 |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (per branch) | ≤ 1.5 A |
| Current (Total current) | ≤ 84 A |
| Air clearances and creepage distances | |
| Rated insulation voltage | 85 V |
| Rated surge voltage | 0.8 kV (1.2/50 μs) |
Connection data
| Connection 1 (control level) | |
| Connection method | EDAC / ELCO pin strip |
| Coding | 4-4 |
| Number of connections | 1 |
| Number of positions | 56 |
| Note | ELCO pin strip type 8016/EDAC pin strip type 516, left |
| Pitch | 3.81 mm |
| Connection 2 (field level) | |
| Connection method | Screw connection |
| Stripping length | 9 mm |
| Screw thread | M3 |
| Number of positions | 56 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 0.75 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| 0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | |
| 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 0.75 mm² |
| 0.25 mm² ... 0.34 mm² (Ferrule without plastic sleeve) | |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.4 Nm ... 0.5 Nm |
| Pitch | 5 mm |
Signaling
| Status display present | No |
Dimensions
| Item dimensions | |
| Width | 146.05 mm |
| Height | 77.4606 mm |
| Depth | 51.16 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | Polyamide PA non-reinforced |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Approvals
| UKCA | |
| Certificate | UKCA-compliant |
Standards and regulations
| Air clearances and creepage distances | |
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting type | DIN rail mounting |
| Mounting position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 56 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 1.5 A |
| Depth (EF000049) | 51.16 mm |
| Width (EF000008) | 146.05 mm |
| Height (EF000040) | 77.4606 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
