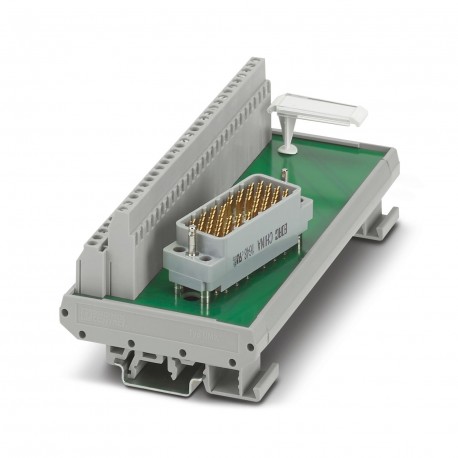

UMK- EC56/56-XOL 2975890 PHOENIX CONTACT Interface module

UMK-EC56/56-XOL

2975890

PHOENIX CONTACT

1 Pcs.

Interface module Interconnect module, connection 1: Screw connection, connection 2: EDAC / ELCO 1x 56-pole sprat (ELCO type 8016 sprat / EDAC sprat type 516, left) Signal Transfer Module, Connection 1: Screw Connection, Connection 2: EDAC / ELCO Sprat 1x 56-Pole (ELCO Sprat Type 8016 / EDAC Sprat Type 516, Left)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2975890
Packing unit1 pc
Catalog pagePage 579 (C-5-2017)
GTIN4017918089184
Weight per Piece (excluding packing)274.440 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width157.5 mm
Height77 mm
Depth58.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage125 V AC/DC
Max. perm. current (per branch)1.5 A
Max. permissible current (all branches)28 A (56 branches with 0.5 A each)
Number of positions56
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodELCO connector
Coding1-1
Number of connections1
Number of positions56
NotePin strip type 8016, left

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2975890 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 56
Rated voltage (EF000228) 125 V
Rated current (EF000227) 1.5 A
Depth (EF000049) 57.37 mm
Width (EF000008) 157.25 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
