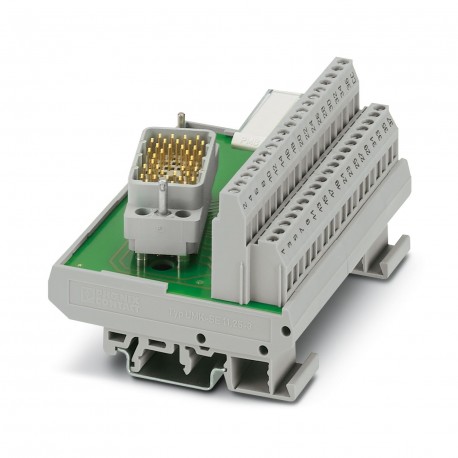

PHOENIX CONTACT UMK-EC38/38-XOR UMK- EC38/38-XOR 2976297 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UMK- EC38/38-XOR 2976297 PHOENIX CONTACT Interface module

UMK-EC38/38-XOR

2976297

PHOENIX CONTACT

1 Pcs.

Interface module Interconnect module, connection 1: Screw connection, connection 2: EDAC / ELCO 1x 38-pole sprat (ELCO type 8016 sprat / EDAC sprat type 516, right) Signal Transfer Module, Connection 1: EDAC / ELCO Sprat 1x 38-Pole (ELCO Sprat Type 8016/EDAC Sprat Type 516, Right), Connection 2: 38-Pole Screw Connection

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2976297
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 578 (C-5-2017)
GTIN4017918089320
Weight per Piece (excluding packing)195.680 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width101.5 mm
Height77 mm
Depth58.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 40 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2 A
Max. permissible current (all branches)76 A
Number of positions38
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodELCO connector
Coding1-1
Number of connections1
Number of positions38
NotePin strip, Type 8016, right

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage85 V
Rated surge voltage0.8 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2976297 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 38
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2 A
Depth (EF000049) 57.22 mm
Width (EF000008) 101.25 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
