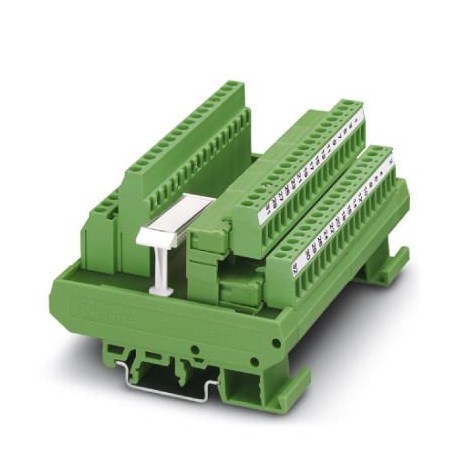

UMK-32 MDSTB/MKKDS3/R 2970196 PHOENIX CONTACT Interface module

UMK-32 MDSTB/MKKDS3/R

2970196

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, with screw connection and COMBICON plug-in connector, coded, for mounting on NS 35/7.5 or NS 32, number of poles 32

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2970196
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 599 (C-7-2015)
GTIN4017918087685
Weight per Piece (excluding packing)2.800 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width112.5 mm
Height77 mm
Depth58.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage250 V AC/DC
Max. perm. current (per branch)3 A
Number of positions32
Mounting positionany

Connection data for connection 1

Connection namePCB connection
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Number of connections1
Number of positions32

Connection data for connection 2

Connection namePCB connection
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of connections1
Number of positions32

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2970196 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Other
Number of poles (EF001391) 32
Rated voltage (EF000228) 250 V
Rated current (EF000227) 3 A
Depth (EF000049) 57.5 mm
Width (EF000008) 112.4 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
