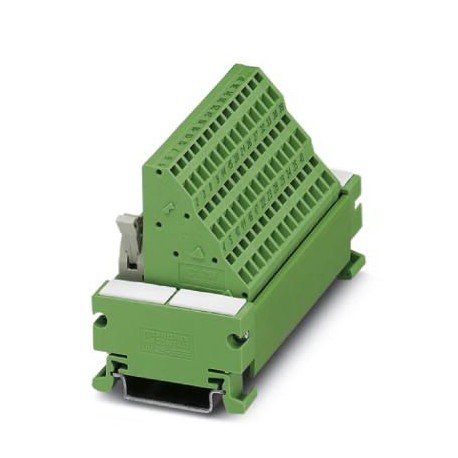

PHOENIX CONTACT UM 45-FLKS50/ZFKDS UM 45-FLKS50/ZFKDS 2968470 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM 45-FLKS50/ZFKDS 2968470 PHOENIX CONTACT Interface module

UM 45-FLKS50/ZFKDS

2968470

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, with three-level spring connection and plug-in flat cable connector, for mounting on NS 35/7.5, number of poles 50

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2968470
Packing unit1 pc
Catalog pagePage 303 (IF-2011)
GTIN4017918932817
Weight per Piece (excluding packing)160.200 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width111 mm
Height45 mm
Depth61 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Number of positions50
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 14

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50

Supported controller

ControllerSIEMENS S7-400
- suitable I/O card6ES7 431-0HH0-0AB0
6ES7 431-1KF00-0AB0
6ES7 431-1KF10-0AB0
6ES7 431-1KF20-0AB0
6ES7 431-7KF00-0AB0
6ES7 431-7KF10-0AB0
6ES7 431-7QH00-0AB0
6ES7 432-1HF00-0AB0

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2968470 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 60.66 mm
Width (EF000008) 111 mm
Height (EF000040) 45 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet
