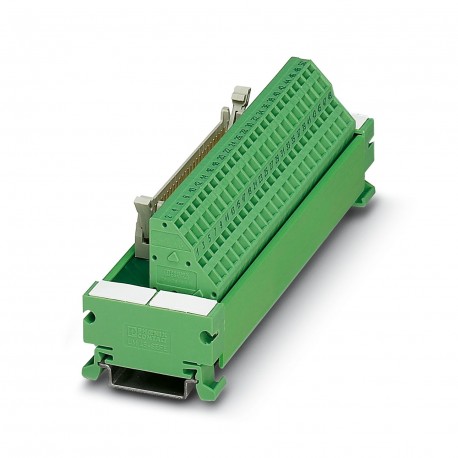

PHOENIX CONTACT UM 45-FLK10/ZFKDS UM 45-FLK10/ZFKDS 2293514 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM 45-FLK10/ZFKDS 2293514 PHOENIX CONTACT Interface module

UM 45-FLK10/ZFKDS

2293514

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, spring-loaded and plug-in flat cable connector, for mounting on NS 35/7.5, number of poles 10 VARIOFACE module, with tension spring connection and ribbon cable connector, for mounting on NS 35/7.5, number of poles 10

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2293514
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 303 (IF-2011)
GTIN4017918120412
Weight per Piece (excluding packing)41.250 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width54 mm
Height45 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Number of positions10
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 14

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions10

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2293514 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 10
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 50.42 mm
Width (EF000008) 54 mm
Height (EF000040) 45 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
