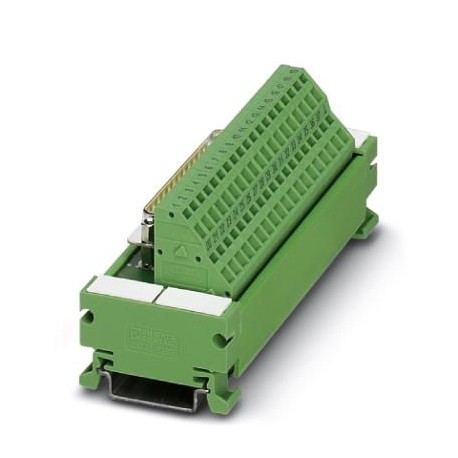

PHOENIX CONTACT UM 45-D37SUB/S/ZFKDS UM 45-D37SUB/S/ZFKDS 2293640 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM 45-D37SUB/S/ZFKDS 2293640 PHOENIX CONTACT Interface module

UM 45-D37SUB/S/ZFKDS

2293640

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module, spring-loaded and subminiature plug D, for mounting on NS 35/7.5, number of poles 37

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2293640
Packing unit1 pc
Catalog pagePage 308 (IF-2011)
GTIN4017918120542
Weight per Piece (excluding packing)140.300 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width121 mm
Height45 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2.5 A
1.5 A (with even load on all branches)
Number of positions37
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodSpring-cage connection
Stripping length8 mm
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 14

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections1
Number of positions37

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2293640 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 37
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2.5 A
Depth (EF000049) 49.56 mm
Width (EF000008) 120 mm
Height (EF000040) 45 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
