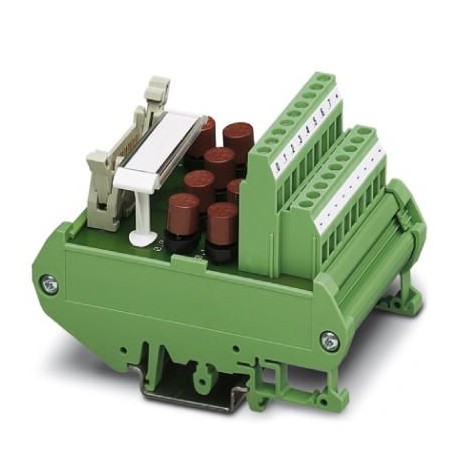

PHOENIX CONTACT FLKM 14/8M/SI/PLC FLKM 14/8M/SI/PLC 2294487 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM 14/8M/SI/PLC 2294487 PHOENIX CONTACT Passive module

FLKM 14/8M/SI/PLC

2294487

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE module for 8 channels with one additional terminal block each and fuse per signal, (common negative potential)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2294487
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 530 (C-5-2017)
GTIN4017918148966
Weight per Piece (excluding packing)96.660 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width57 mm
Height90 mm
Depth68 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage60 V DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)2 A
Number of positions14
Status displayNo
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions14
Pitch2.54 mm

Supported controller

ControllerSIEMENS S7-1500
- suitable I/O card6ES7 521-1BH00-0AB0
6ES7 521-1BH50-0AA0
6ES7 521-1BL00-0AB0
6ES7 522-1BH00-0AB0
6ES7 522-1BH01-0AB0
6ES7 522-1BL00-0AB0
6ES7 522-1BL01-0AB0
ControllerGE-FANUC 90-30
- suitable I/O cardIC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742
ControllerALLEN-BRADLEY ControlLogix
- suitable I/O card1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E
ControllerALLEN-BRADLEY PLC 5
- suitable I/O card1771 IBN
1771 OBN
ControllerALLEN-BRADLEY SLC 500
- suitable I/O card1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
1746 IB16
ControllerHONEYWELL Experion PKS C200
- suitable I/O cardTC-IDD 321
TC-ODD 321
ControllerMITSUBISHI MELSEC Q
- suitable I/O cardQX81
QY81P
QX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P
ControllerSchneider Electric Modicon TSX QUANTUM
- suitable I/O cardDDI 353
DDI 853
DAI 353
DAI 453
DDO 353
ControllerSIEMENS S7-300 / ET 200 M
- suitable I/O cardCPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7 321-1BH02-0AA0
6ES7 321-1BL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-1BL00-0AA0
6ES7 323-1BH01-0AA0
6ES7 323-1BL00-0AA0
6ES7 321-1BH10-0AA0
6ES7 322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
ControllerABB S800 I/O
- suitable I/O cardDO810
DO840
ControllerGE-FANUC RX3i
- suitable I/O cardIC694MDL754
IC694MDL660
ControllerMITSUBISHI MELSEC L
- suitable I/O cardLX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2294487 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 60 V
Rated current (EF000227) 1 A
Depth (EF000049) 65.9 mm
Width (EF000008) 55.8 mm
Height (EF000040) 89.6 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
