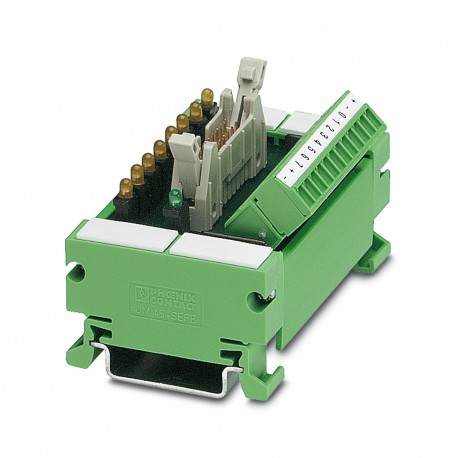

PHOENIX CONTACT UM 45-DO/LA/SIM8 UM 45-DO/LA/SIM8 2968195 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM 45-DO/LA/SIM8 2968195 PHOENIX CONTACT Interface module

UM 45-DO/LA/SIM8

2968195

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE display module, with plug-in connector for flat cable and plug-in COMBICON connector, for simulation, for 8 signals, for installation on NS 35/7.5 VARIOFACE indicator module, with flat-ribbon cable and COMBICON connector, for simulation, for 8 signals, for mounting on NS 35/7.5

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Data management status
Article revision08
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage range19.2 V DC ... 26.4 V DC
Current (per branch)≤ 1 A
Current (Voltage supply +,- IDC/FLK)≤ 3 A
Current (Terminal block +,-)≤ 8 A
Air clearances and creepage distances
Rated insulation voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)
Supported controller SIEMENS S7-400
Suitable I/O card6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0
Supported controller GE-FANUC 90-30
Suitable I/O cardIC693 MDL732
IC693 MDL740
IC693 MDL742
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card1756-OB32
1756-OB16E
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card1771 OBN
Supported controller ALLEN-BRADLEY SLC 500
Suitable I/O card1746 OB16
1746 OB 32
Supported controller HONEYWELL Experion PKS C200
Suitable I/O cardTC-ODD 321
Supported controller MITSUBISHI MELSEC Q
Suitable I/O cardQY81P
Supported controller SIEMENS S7-300 / ET 200 M
Suitable I/O cardCPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
CPU 313C
CPU 313C-2PtP
Supported controller ABB S800 I/O
Suitable I/O cardDO810
DO840
Supported controller EMERSON DeltaV
Suitable I/O cardVE4002S1T1B3
VE4002S1T2B3
VE4002S1T2B3 Series 2
VE4002S1T2B6
Supported controller GE-FANUC RX3i
Suitable I/O cardIC694MDL754
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions14
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Number of positions12
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.08 mm² ... 0.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 0.75 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.08 mm² ... 0.75 mm²
0.25 mm² ... 0.34 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG28 ... 16
Tightening torque0.22 Nm ... 0.25 Nm
Pitch3.81 mm
Signaling
Status displayLED (yellow)
Status display presentYes
Operating voltage displayGreen LED
Dimensions
Item dimensions
Width74.8 mm
Height50.02 mm
Depth50.9 mm
Material specifications
Colorgreen (RAL 6021)
Housing insulation materialPVC
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2968195 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 12
Rated current (EF000227) 1 A
Depth (EF000049) 50.9 mm
Width (EF000008) 74.8 mm
Height (EF000040) 50.02 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
