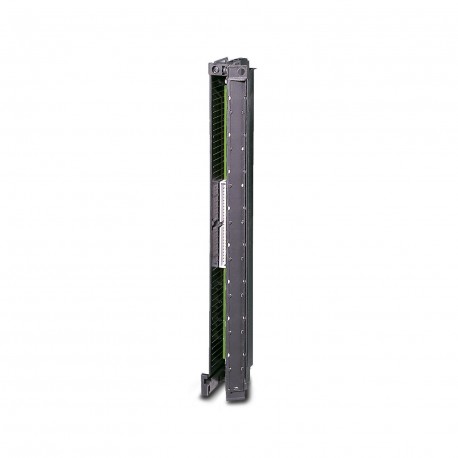

FLKM 50-PA-S400 2294500 PHOENIX CONTACT Front adapters
FLKM 50-PA-S400
2294500
PHOENIX CONTACT
2 Pcs.
Front adapters
VARIOFACE front adapter, for Siemens SIMATIC® S7-400, 1x 32 channel connection
Automation > Accessories/spare parts for controls
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Front adapter |
| Product family | VARIOFACE |
| Data management status | |
| Article revision | 11 |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply via IDC/FLK) | ≤ 2 A |
| Current (Voltage supply via spade connection) | ≤ 8 A |
| Air clearances and creepage distances | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Supported controller SIEMENS S7-400 | |
| Suitable I/O card | 6ES7421-1BL01-0AA0 |
| 6ES7422-1BL00-0AA0 | |
| 6ES7422-7BL00-0AB0 | |
| Supported controller SIEMENS S7-400 | |
| Note | Only in conjunction with VIP-2/SC/FLK50/S7/A-S400, Item No. 2322359 VIP-2/PT/FLK50/S7/A-S400, Item No. 2904289 all DR wire bridges on the adapter must be disconnected. |
| Suitable I/O card | 6ES7421-7BH01-0AB0 |
| 6ES7421-7DH00-0AA0 | |
Connection data
| Connection 1 (control level) | |
| Connection method | Plug-in connection |
| Number of positions | 48 |
| Connection 2 (field level) | |
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
| Connection 3 (supply) | |
| Connection method | Spade connection |
| Number of positions | 5 |
| Note | 2,8 x 0,8 |
Dimensions
| Item dimensions | |
| Width | 24.2 mm |
| Height | 273.5 mm |
| Depth | 67.6 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Standards and regulations
| Air clearances and creepage distances | |
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting type | Plug-in mounting |
| Mounting position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Notes on operation | For I/O cards 6ES7 421-1BL01-0AA0, 6ES7 422-1BL00-0AA0, and 6ES7 422-7BL00-0AB0: Thanks to the wire bridges that are supplied as standard, the input and output bytes are non-isolated. |
| Notes on operation | For I/O cards 6ES7 421-7BH01-0AB0 and 6ES7 421-7DH00-0AB0: Only operate in conjunction with VIP-2/SC/FLK50/S7/A-S400 (Item No. 2322359) or VIP-2/PT/FLK50/S7/A-S400 (Item No. 2904289). All wire bridges on the adapter must be disconnected. |
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Adapter |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
