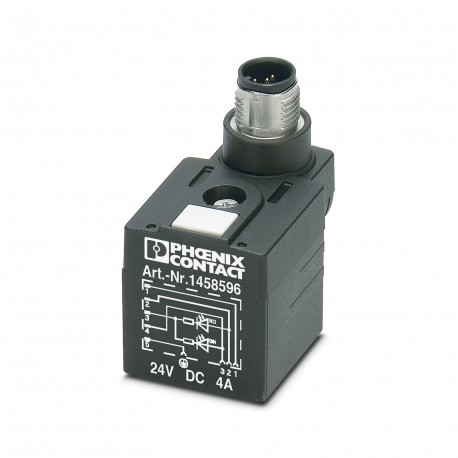

SAC-5P-MS/AD-2L SCO 1458596 PHOENIX CONTACT Valve connectors

SAC-5P-MS/AD-2L SCO

1458596

PHOENIX CONTACT

1 Pcs.

Valve connectors Valve connector, 5-pole, Straight M12 connector, coding: A SPEEDCON, with 2 LEDs, to AD valve connectors (Druckschalter), with 2 LEDs Valve connectors, 5-position, Plug straight M12 SPEEDCON, coding: A, with 2 LEDs, on Valve connector AD (pressure switch), with 2 LEDs

Connectors > Valve connector (field assembly)
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeValve connector adapter
Number of positions5
No. of cable outlets1
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Dimensions
Dimensional drawingbtsaopheyr.jpg
Width28 mm
Height42.4 mm
Length41 mm
Connection data
Connection methodM12 connector
Tightening torque0.6 Nm (valve plug)
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN24 V AC
24 V DC
Nominal current IN4 A
Protective circuitunwired
Valve connector characteristics
Fixing screwsM3 x 29
Mechanical properties
Mechanical data
Insertion/withdrawal cycles50 (valve plug)
≥ 100 (M12 connector)
Material specifications
Flammability rating according to UL 94HB
Seal materialTPU
Material housing valve plugTPU
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 66
Contact materialCuSn
Valve plug contact insert materialPA 6.6
Contact surface materialSn
Material for screw connectionZinc die-cast, nickel-plated
Signaling
Status display2 LEDs
Status display presentYes
Connector
Connection 1
TypePlug straight M12 SPEEDCON
Number of positions5
Locking typeSPEEDCON
Coding typeA
Connection 2
TypeValve connector AD (Druckschalter)
Number of positions5
MaterialCuSn (Contact)
Sn (Contact surface)
PA 6.6 (Contact carriers)
TPU (Housing)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (valve plug)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Valve connector
Standard designationValve connector
Standards/specificationsEN 175301-803

ETIM for 1458596 Sensors (EC003623)
Feature Name Feature Value
Number of poles (EF001391) 5
Rated voltage (EF000228) 24 V
Rated current (EF000227) 4 A
Housing material (EF001596) Other
Material of contact surface (EF004020) Tin
Pollution degree (EF006786) 3
Inflammability class of insulation material according to UL94 (EF002521) HB
Operating temperature (EF002393) -25 °C
Degree of protection (IP), mounted (EF007466) IP65
Min. number of insertion cycles (EF012212) 50
With PE-connection (EF005600) No
With status indication (EF001602) Yes
