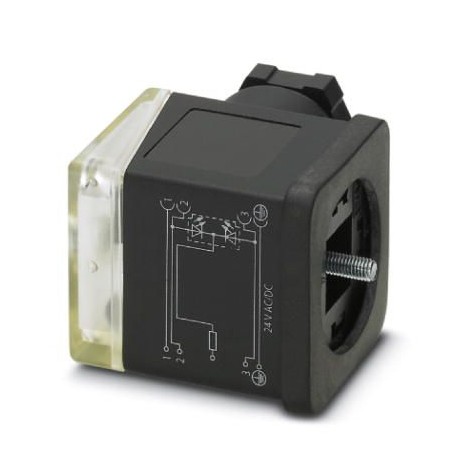

SACC-VB-5CON-M20/AD-2L 24V 1457908 PHOENIX CONTACT Valve connectors
SACC-VB-5CON-M20/AD-2L 24V
1457908
PHOENIX CONTACT
1 Pcs.
Valve connectors
Valve Connector, Universal, 5-Pole, AD Valve Connector (Pressure Switch), Screw Connection, M16 Cable Gland, Cable Outer Diameter 6 mm... 8 mm
Connectors > Valve connector (field assembly)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1457908 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 27 (C-2-2017) |
| GTIN | 4046356630689 |
| Weight per Piece (excluding packing) | 32.300 g |
| Custom tariff number | 85366990 |
| Country of origin | HU (Hungary) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (valve plug) |
|---|---|
| Degree of protection | IP65 |
General
| Rated current at 40°C | 1.5 A |
|---|---|
| Rated voltage | 24 V |
| Number of positions | 5 |
| Insulation resistance | > 2 GΩ |
| Standards/regulations | Valve connector EN 175301-803 |
| Status display | 2 LEDs |
| Protective circuit/component | unwired |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Insertion/withdrawal cycles | 50 (Valve connector) |
| Torque | 1.8 Nm ±0.2 Nm (Pressure screw) |
| 0.4 Nm ±0.1 Nm (Central screw) | |
| 0.2 Nm ±0.1 Nm (Contact screw) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Valve plug contact material | CuZn |
| Valve plug contact surface material | CuSn |
| Material housing valve plug | PA |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | Valve connector |
|---|---|
| Standards/regulations | EN 175301-803 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440104eCl@ss 8.027440104eCl@ss 9.027440105
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| For cable outer diameter (EF009475) | 6 mm |
| Connectable conductor cross section (EF008200) | 0.25 mm² |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 1.5 A |
| Housing material (EF001596) | Other |
| Material of contact surface (EF004020) | Other |
| Pollution degree (EF006786) | 3 |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Min. number of insertion cycles (EF012212) | 50 |
| With PE-connection (EF005600) | No |
| With status indication (EF001602) | Yes |
