View larger
Images are for illustrative purposes only. Please refer to data sheet for details

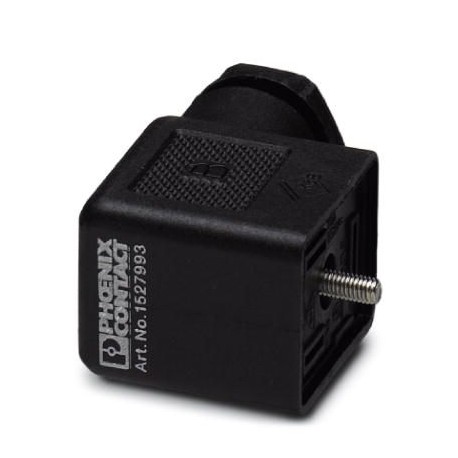

SACC-V-3CON-PG9/BI 1527993 PHOENIX CONTACT Valve connectors
SACC-V-3CON-PG9/BI
1527993
PHOENIX CONTACT
1 Pcs.
Valve connectors
Valve Connector, Universal, 3-Pole, BI Valve Connector (11mm), Screw Connection, Pg9 Cable Gland, Cable Outer Diameter 6mm... 8 mm
Automation > Sensor actuator adapter
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1527993 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 110 (PC-2009) |
| GTIN | 4017918981013 |
| Weight per Piece (excluding packing) | 21.280 g |
| Custom tariff number | 85366990 |
| Country of origin | HU (Hungary) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 100 °C (connector) |
|---|---|
| Degree of protection | IP65 |
General
| Rated current at 40°C | 10 A |
|---|---|
| Rated voltage | 240 V |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Status display | No |
| Protective circuit/component | unwired |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.34 mm² ... 1.5 mm² |
| Conductor cross section AWG | 22 ... 16 |
| Insertion/withdrawal cycles | 50 (Valve connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Ni |
| Valve plug contact insert material | PA6 |
| Material housing valve plug | PA6 |
| Sealing material | NBR |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
