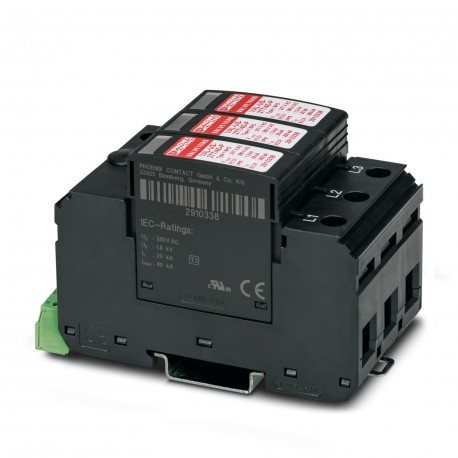

PHOENIX CONTACT VAL-US-240D/40/3+0-FM VAL-US-240D/40/3+0-FM 2910370 PHOENIX CONTACT Type 2 surge protection device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VAL-US-240D/40/3+0-FM 2910370 PHOENIX CONTACT Type 2 surge protection device

VAL-US-240D/40/3+0-FM

2910370

PHOENIX CONTACT

1 Pcs.

Type 2 surge protection device 3-channel surge protection device with remote indication contact, for 240 V AC delta configurations. Surge protective device, three channel with remote indicator contact for 240 V AC DELTA.

Automation > Surge protection device for power supply systems
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General
NoteAdditional information for IT systems
Product properties
Product typeSurge protection for NEMA power supply units
Product familyVALVETRAB US
IEC test classificationII
T2
EN typeT2
IEC power supply systemTN-C
IT
TypeDIN rail module, two-section, divisible
Number of positions3
Surge protection fault messageOptical, remote indicator contact
Data management status
Article revision04
Insulation characteristics
Overvoltage categoryIII
Pollution degree2
Electrical properties
Nominal frequency fN50 Hz (60 Hz)
Indicator/remote signaling
Connection nameRemote fault indicator contact
Switching functionChangeover contact
Operating voltage5 V AC ... 250 V AC
30 V DC
Operating current5 mA AC ... 750 mA AC
1 A DC
Connection data
Connection methodScrew connection
Screw threadM5
Tightening torque3 Nm (1.5 mm² ... 16 mm²)
4.5 Nm (25 mm² ... 35 mm²)
Stripping length16 mm
Conductor cross section flexible1.5 mm² ... 25 mm²
Conductor cross section rigid1.5 mm² ... 35 mm²
Conductor cross section AWG15 ... 2
Connection methodFork-type cable lug
Conductor cross section flexible1.5 mm² ... 16 mm²
Remote fault indicator contact
Connection methodPlug-in/screw connection via COMBICON
Screw threadM2
Tightening torque0.25 Nm
Stripping length7 mm
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Dimensions
Dimensional drawingkynxpveywq.jpg
Width53.4 mm
Height98.7 mm
Depth65.7 mm (incl. DIN rail 7.5 mm)
Horizontal pitch3 Div.
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V-0
CTI value of material600
Insulating materialPA 6.6/PBT
Material groupI
Housing materialPA 6.6
PBT
Protective circuit
Mode of protectionL-PEN
Direction of action3L-GND
Nominal voltage UN240 V AC (IT)
Nominal frequency fN50 Hz (60 Hz)
Maximum continuous voltage UC275 V AC
Residual current IPE≤ 450 µA
Standby power consumption PC≤ 120 mVA
Nominal discharge current In(8/20) µs20 kA
Maximum discharge current Imax(8/20) µs40 kA
Short-circuit current rating ISCCR25 kA
Voltage protection level Up≤ 1.35 kV
Residual voltage Ures≤ 1.35 kV (at In)
≤ 1.1 kV (at 10 kA)
≤ 1 kV (at 5 kA)
≤ 0.9 kV (at 3 kA)
TOV behavior at UT335 V AC (5 s / withstand mode)
440 V AC (120 min / safe failure mode)
Response time tA≤ 25 ns
Max. backup fuse with branch wiring125 A (gG)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20 (only when all terminal points are used)
Ambient temperature (operation)-40 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m (amsl)
Permissible humidity (operation)5 % ... 95 %
Shock (operation)25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation)5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
Approvals
UL specifications
Maximum continuous operating voltage MCOV (L-L)550 V AC
Maximum continuous operating voltage MCOV (L-G)275 V AC
Short-circuit current rating (SCCR)200 kA
Voltage protection rating VPR (L-L)1800 V
Voltage protection rating VPR (L-G)1000 V
UL typetype 1
Nominal discharge current In20 kA
Maximum Surge Current per Phase40 kA
Mode of protectionL-L
L-G
Nominal voltage240 V AC (3-phase Delta)
Power distribution systemDelta
Nominal frequency50/60 Hz
SPD Type1
UL indicator/remote signaling
Operating voltage125 V AC
AC operating current1 A AC
UL connection data
Tightening torque30 lbf-in.
Conductor cross section AWG14 ... 2
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN 60664-1 / EN 61643-11
Standards/specificationsIEC 61643-11
Note2011
Standards/specificationsEN 61643-11
Note2012
Mounting
Mounting typeDIN rail: 35 mm

ETIM for 2910370 Earthing, lightning and surge protection (EC000941)
Feature Name Feature Value
System configuration DC (EF009926) No
System configuration IT (EF009927) No
System configuration TN (EF009928) No
System configuration TN-C (EF009929) Yes
System configuration TN-C-S (EF009933) No
System configuration TN-S (EF009930) No
System configuration TT (EF009931) No
System configuration other (EF009932) No
Nominal discharge surge current (8/20) (EF004214) 20 kA
Max. discharge surge current (8/20) (EF012274) 40 kA
Max. continuous voltage AC (EF004198) 275 V
Voltage protection level L-N (EF004236) 1.35 kV
Max. overcurrent protection device, parallel connection (fuse) (EF015962) 125 A
Short-circuit breaking capacity (Isccr) (EF012627) 25 kA
Integrated backup fuse (EF008797) Yes
Leakage-current free (EF016002) No
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Construction size (EF002566) Other
Max. conductor cross section solid (solid, stranded) (EF008827) 1.5 mm²
Max. conductor cross section flexible (fine-strand) (EF008828) 25 mm²
With remote signalling contact (EF000422) Yes
Signalling at the device (EF004241) Optic
Category type 2 (EF004230) Yes
Degree of protection (IP) (EF005474) IP20
