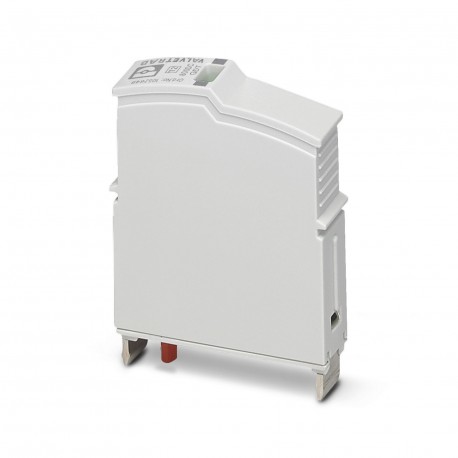

VAL-SEC-T2-GDT-800DC-P 1052649 PHOENIX CONTACT Type 2 surge protection plug
VAL-SEC-T2-GDT-800DC-P
1052649
PHOENIX CONTACT
1 Pcs.
Type 2 surge protection plug
Replacement connector for surge protection device from the VALVETRAB SEC product line for DC power sources. Ground the path for 220 and 380 V DC.
Replacement plug for surge protective devices from the VALVETRAB SEC product range for DC power sources. Protection of the path to the ground for 220 und 380 V DC.
Automation > Accessories/spare parts for surge protection power supply systems
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | |
| Note | The VAL-SEC-T2-GDT-800DC-P protective plug (Item No..: 1052649) is only to be used in series connection with a VAL-SEC-T2-220DC-P (Item No..: 2907879) or VAL-SEC-T2- 380DC-P (Item No..: 2907880). It is not designed for direct use on mains voltage. |
| Uagn≥ 600 V | |
Product properties
| Product type | Replacement plug |
| Product family | SEC Family |
| IEC test classification | II |
| T2 | |
| EN type | T2 |
| IEC power supply system | DC |
| Type | Male |
| Number of positions | 1 |
| Surge protection fault message | optical |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
Connection data
| Connection method | pluggable |
Dimensions
| Dimensional drawing |  |
| Width | 11.7 mm |
| Height | 46.4 mm |
| Depth | 59.4 mm |
| Horizontal pitch | 0.6 Div. |
Material specifications
| Color | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA6.6-FR 20% GF |
| PBT-FR | |
| Material group | I |
| Housing material | PA 6.6-FR 20 % GF |
| PBT-FR |
Protective circuit
| Mode of protection | (DC+/DC-) - PE |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 20 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Voltage protection level Up | ≤ 1.5 kV |
| Residual voltage Ures | ≤ 0.5 kV (at In) |
| ≤ 0.5 kV (at 10 kA) | |
| ≤ 0.5 kV (at 5 kA) | |
| ≤ 0.5 kV (at 4 kA) | |
| ≤ 0.5 kV (at 2 kA) | |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.5 kV |
| Response time tA | ≤ 100 ns |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 6000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
Standards and regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| EN 61643-11 | |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting type | on base element |
