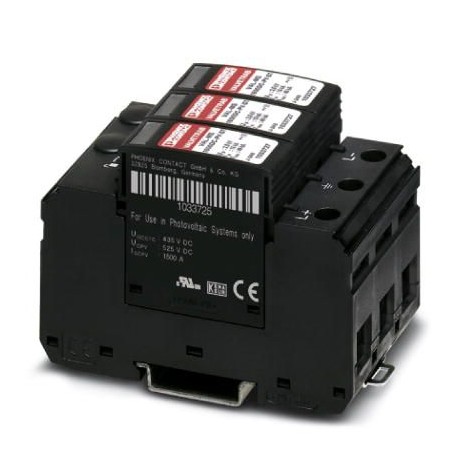

VAL-MS 1500DC-PV/2+V 1033708 PHOENIX CONTACT Type 2 surge arrester
VAL-MS 1500DC-PV/2+V
1033708
PHOENIX CONTACT
1 Pcs.
Type 2 surge arrester
Surge charger for isolated direct current systems of 1500 V DC and 2 poles, for rail mounting, 3-pole base element, three plug-in protection elements with temperature control, status signaling in each connector.
Automation > Surge protection device for power supply systems
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1033708 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626540351 |
| Weight per Piece (excluding packing) | 335.300 g |
| Custom tariff number | 85354000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 (only when all terminal points are used) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 3000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (5-500 Hz/2.5 h/XYZ) |
General
| IEC test classification | PV II |
|---|---|
| PV T2 | |
| EN type | T2 |
| IEC power supply system | DC |
| SPD failure behavior | OCM (Open-circuit mode) |
| Connection configuration | Y configuration |
| Installation location | Inside |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mode of protection | (L+) - (L-) |
| (L+) - PE | |
| (L-) - PE | |
| Mounting type | DIN rail: 35 mm |
| Color | jet black RAL 9005 |
| Housing material | PA 6.6-FR |
| PBT-FR | |
| Degree of pollution | 2 |
| Distance between live and grounded parts | 8 mm |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, two-section, divisible |
| Surge protection fault message | optical |
Additional descriptions
| Note | The device is intended for touch proof installation in a housing. Ensure that there is a gap of at least 8 mm between the active and grounded parts in the connection area. |
|---|
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 1500 V DC |
|---|---|
| Short-circuit current rating ISCPV | 2000 A |
| Continuous operating current ICPV | < 350 µA |
| Rated load current IL | 80 A |
| Residual current IPE | ≤ 350 µA DC |
| ≤ 600 µA AC | |
| Standby power consumption PC | ≤ 250 mVA |
| Nominal discharge current (8/20) µs | 15 kA |
| Maximum discharge current Imax(8/20) µs | 30 kA |
| Total discharge current Itotal(8/20) µs | 30 kA |
| Voltage protection level Up | ≤ 5 kV |
| Residual voltage Ures | ≤ 5 kV (at In) |
| ≤ 6 kV (at 30 kA) | |
| Response time tA | ≤ 25 ns |
Additional technical data
| Maximum discharge current Imax(8/20) µs | 40 kA |
|---|---|
| Nominal discharge current In(8/20) µs | 20 kA (4x (5x In| 120 s) | 30 min)) |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M5 |
| Tightening torque | 3 Nm (1,5 mm² ... 16 mm²) |
| 4.5 Nm (25 mm² ... 35 mm²) | |
| Stripping length | 16 mm |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² |
| Conductor cross section solid | 1.5 mm² ... 35 mm² |
| Conductor cross section AWG | 15 ... 2 |
| Connection method | Fork-type cable lug |
| Conductor cross section flexible | 1.5 mm² ... 16 mm² |
UL specifications
| SPD Type | 1CA |
|---|---|
| Maximum continuous operating voltage MCOV | 1500 V DC |
| Nominal voltage | 1500 V DC |
| Mode of protection | (DC+) - (DC-) |
| (DC+) - G | |
| (DC-) - G | |
| Power distribution system | DC PV |
| Voltage protection rating VPR | 4 kV |
| Nominal discharge current In | 10 kA |
| Short-circuit current rating (SCCR) | 50 kA |
Classifications
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| Category type 2 (EF004230) | Yes |
