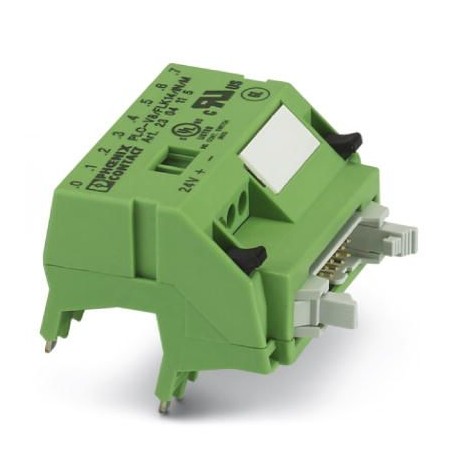

PHOENIX CONTACT PLC-V8/FLK14/IN/M PLC-V8/FLK14/IN/M 2304115 PHOENIX CONTACT System connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-V8/FLK14/IN/M 2304115 PHOENIX CONTACT System connection

PLC-V8/FLK14/IN/M

2304115

PHOENIX CONTACT

1 Pcs.

System connection V8 adapter for 8 x PLC-INTERFACE (6.2 mm), control: PLC input card wiring system, connection 1: 1x screw connection, connection 2: 1x 14-pole IDC/FLK male connector, connection 3: Plug-in connection (Fits into 8x PLC-INTERFACE terminals), number of channels: 8, control logic: minusschaltend

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2304115
Packing unit1 pc
Catalog pagePage 425 (C-5-2017)
GTIN4017918924423
Weight per Piece (excluding packing)41.200 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width50 mm
Height39 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

General

Max. perm. operating voltage30 V DC
Max. perm. current (per branch)1 A (per signal path)
Max. permissible current (separate power supply)3 A
Number of positions14
Status displayGreen LED
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP20

Connection data for connection 1

Connection nameSupply
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of connections1

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions14
Pitch2.54 mm

Connection data for connection 3

Connection nameField level
Connection methodPlug connection
NoteCan be snapped onto 8x PLC-INTERFACE terminals

Supported controller

ControllerABB S800 I/O
- suitable I/O cardDI814
ControllerEmerson DeltaV
- suitable I/O cardVE4001S2T2B3 Series 2
VE4001S5T2B5
VE4001S2T2B5
ControllerMITSUBISHI MELSEC Q
- suitable I/O cardQY41P
QY42P
QH42P
ControllerMITSUBISHI MELSEC L
- suitable I/O cardLY41NT1P
LY42NT1P
ControllerSIEMENS S7-1500
- suitable I/O card6ES7 521-1BH50-0AA0

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.5 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2304115 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Plug-in connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated current (EF000227) 1 A
Depth (EF000049) 55.8 mm
Width (EF000008) 49.93 mm
Height (EF000040) 41 mm
Mounting method (EF000003) Other
