> PHOENIX CONTACT > INTERFACE Components (IF) > 2296061

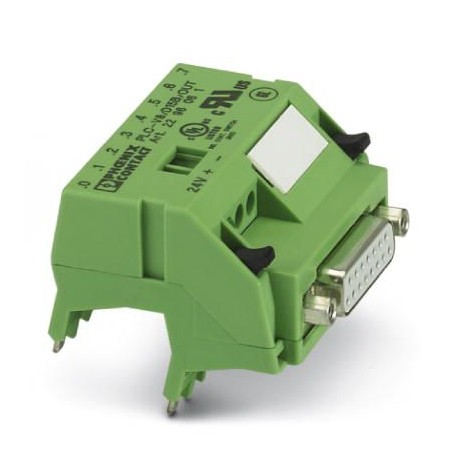

PHOENIX CONTACT PLC-V8/D15B/OUT PLC-V8/D15B/OUT 2296061 PHOENIX CONTACT System connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-V8/D15B/OUT 2296061 PHOENIX CONTACT System connection

PLC-V8/D15B/OUT

2296061

PHOENIX CONTACT

1 Pcs.

System connection V8 adapter for 8 x PLC-INTERFACE (6.2 mm), control: PLC wiring system for output cards, connection 1: Screw connection 1x, connection 2: D-SUB connection female 1x 15-poles, connection 3: Plug-in connection (Fits into 8x PLC-INTERFACE terminals), number of channels: 8, control logic: plusschaltend

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2296061
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 425 (C-5-2017)
GTIN4017918189112
Weight per Piece (excluding packing)39.100 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width50 mm
Height39 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

General

Max. perm. operating voltage30 V DC
Max. perm. current (per branch)1 A (per signal path)
Max. permissible current (separate power supply)3 A
Number of positions15
Status displayGreen LED
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameSupply
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of connections1

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions15

Connection data for connection 3

Connection nameField level
Connection methodPlug connection
NoteCan be snapped onto 8x PLC-INTERFACE terminals

Supported controller

ControllerHONEYWELL Experion PKS C300/C-Series
- suitable I/O cardTDOB01 (non-redundant)
TDOB11 (redundant)

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.5 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2296061 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Plug-in connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 15
Rated current (EF000227) 1 A
Depth (EF000049) 49.81 mm
Width (EF000008) 49.93 mm
Height (EF000040) 41 mm
Mounting method (EF000003) Other
