PLC-V8/D15B/IN 2296087 PHOENIX CONTACT System connection

PLC-V8/D15B/IN

2296087

PHOENIX CONTACT

1 Pcs.

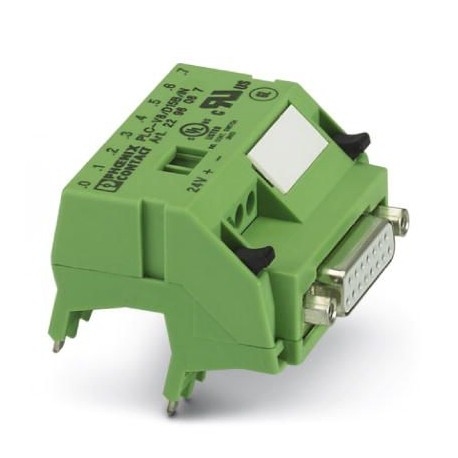

System connection V8 adapter for 8 x PLC-INTERFACE (6.2 mm), control: PLC input card wiring system, connection 1: 1x screw connection, connection 2: D-SUB 1x 15-pole connection female, connection 3: Plug-in connection (Fits into 8x PLC-INTERFACE terminals), number of channels: 8, control logic: plusschaltend

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2296087
Packing unit1 pc
Catalog pagePage 425 (C-5-2017)
GTIN4017918189136
Weight per Piece (excluding packing)45.700 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width50 mm
Height39 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

General

Max. perm. operating voltage30 V DC
Max. perm. current (per branch)1 A (per signal path)
Max. permissible current (separate power supply)3 A
Number of positions15
Status displayGreen LED
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameSupply
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of connections1

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions15

Connection data for connection 3

Connection nameField level
Connection methodPlug connection
NoteCan be snapped onto 8x PLC-INTERFACE terminals

Supported controller

ControllerHONEYWELL Experion PKS C300/C-Series
- suitable I/O cardTDIL01 (non-redundant)
TDIL11 (redundant)

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.5 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2296087 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Plug-in connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 15
Rated current (EF000227) 1 A
Depth (EF000049) 49.81 mm
Width (EF000008) 49.93 mm
Height (EF000040) 41 mm
Mounting method (EF000003) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
