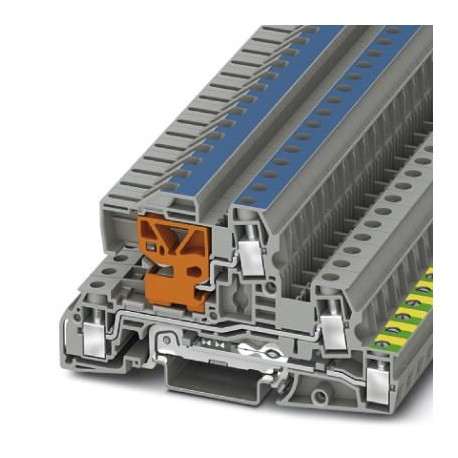

PHOENIX CONTACT UTI 6-PE/L/NT UTI 6-PE/L/NT 3076039 PHOENIX CONTACT Installation ground terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UTI 6-PE/L/NT 3076039 PHOENIX CONTACT Installation ground terminal block

UTI 6-PE/L/NT

3076039

PHOENIX CONTACT

50 Pcs.

Installation ground terminal block Ground terminal for distribution, Installation indication: To securely fix the busbar N, trestles must be placed at the beginning and end of each terminal strip, as well as longer strips every 20 cm. You will find the corresponding suitable trestles in phoenixcontact.net/products, nominal voltage: 400 V, nominal current: 38 A, Screw connection, Sizing cross-section: 6 mm², cross-section: 0.2 mm² - 10 mm², mounting class: NS 35/7.5, NS 35/15, color: gray

Automation > Multi level installation terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3076039
Packing unit50 pc
Minimum order quantity50 pc
GTIN4046356817615
Weight per Piece (excluding packing)36.420 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels3
Number of connections4
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Current carrying capacity of the neutral busbar140 A
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W (the value is multiplied when connecting multiple levels)
Ambient temperature (operation)-40 °C ... 130 °C
Nominal current IN38 A (with 6 mm² conductor cross section)
Maximum load current47 A (with 10 mm² conductor cross section)
Nominal voltage UN400 V (phase conductor/phase conductor)
250 V (phase conductor/PE)
250 V (phase conductor/N)
Open side panelYes

Dimensions

Width8.2 mm
Length95 mm
Height NS 35/7,551.5 mm
Height NS 35/1559 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.10 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.10 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.8
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.2.5 mm²
Connection methodScrew connection
Stripping length9 mm
Internal cylindrical gageA5
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3076039 Terminal blocks (EC001329)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 38 A
Rated voltage (EF000228) 400 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Mounting method (EF000003) Other
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.15 mm
Height (EF000040) 95 mm
Depth (EF000049) 51.15 mm
Closing plate required (EF002525) Yes
Basic colour (EF002671) Grey
PE-function (EF002672) Yes
