View larger
Images are for illustrative purposes only. Please refer to data sheet for details

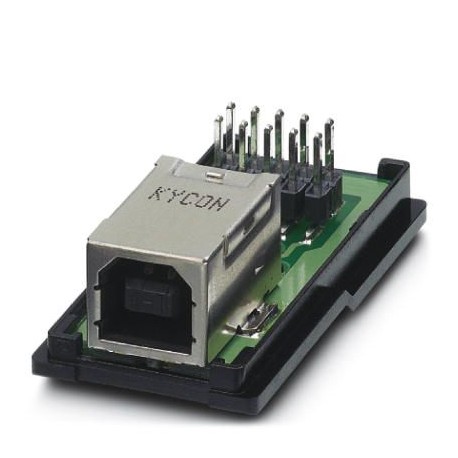

VS-04-BUB-FK-F/IP67 1653867 PHOENIX CONTACT USB female insert
VS-04-BUB-FK-F/IP67
1653867
PHOENIX CONTACT
1 Pcs.
USB female insert
USB socket insert, 4-pole, USB type B female to ribbon cable connection strip, 2.54 pitch, for Freenet system in recessed frame, IP20 terminal output, 19" Patchpanel and maintenance interface
Automation > Fibre optic attenuator
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1653867 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 453 (C-2-2017) |
| GTIN | 4017918970192 |
| Weight per Piece (excluding packing) | 14.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Number of positions | 4 |
|---|---|
| Rated voltage (III/3) | 30 V |
| Connection method | Flat-ribbon cable connection, pitch 2.54 mm |
| Contact material | Copper alloy |
| Contact carrier material | Thermoplastic |
| Contact surface material | Gold over nickel |
| Housing material | PC |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
