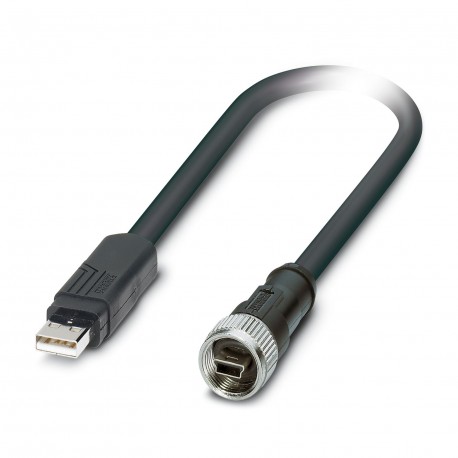

VS-FSDB-IP20SDA/981/2,0 SCO 1420171 PHOENIX CONTACT Patch cable
VS-FSDB-IP20SDA/981/2,0 SCO
1420171
PHOENIX CONTACT
1 Pcs.
Patch cable
USB Cable-ready-made, shielded, black color, PVC outer sheath, USB Mini-B/IP 20 over USB Type-A/IP 20, length. 2 m
Assembled USB cable, shielded, color: black, PVC outer sheath, USB mini-B/IP20 on USB type A/IP20, length: 2 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| Product type | Data cable preassembled |
| Application | Standard |
| Number of positions | 4 |
| Shielded | yes |
| Data management status | |
| Article revision | 06 |
Electrical properties
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 1 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | USB 2.0 |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Flammability rating according to UL 94 | V0 |
Connection data
| Pin assignment | |
| Contact Color (signal designation) Contact (optional) | 1 (M12 mini B) RD (+5 V) 1 (USB type A) |
| 2 (M12 mini B) WH (DATA-) 2 (USB type A) | |
| 3 (M12 mini B) GN (DATA+) 3 (USB type A) | |
| 4 (M12 mini B) N.C. | |
| 5 (M12 mini B) BK (GND) 4 (USB type A) | |
Connector
| Connection 1 | |
| Type | Plug straight USB type A / IP20 |
| Degree of protection | IP20 |
| Connection 2 | |
| Type | Socket straight M12 mini B / IP65 |
| Material | Cu alloy |
| Ni/Au | |
| Degree of protection | IP65 |
Cable/line
| Cable length | 2 m |
| External sheath, color | black |
| Ambient temperature (operation) | -25 °C ... 80 °C (Cable, flexible installation) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 (USB type A) |
| IP65 (M12 mini B) | |
| Ambient temperature (operation) | -25 °C ... 80 °C (Cable, flexible installation) |
