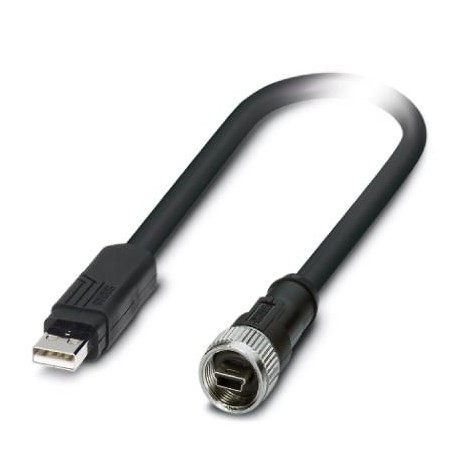

VS-FSDB-IP20SDA/981/1,0 SCO 1420168 PHOENIX CONTACT Patch cable
VS-FSDB-IP20SDA/981/1,0 SCO
1420168
PHOENIX CONTACT
1 Pcs.
Patch cable
USB Cable-ready-made, shielded, black color, PVC outer sheath, USB Mini-B/IP 20 over USB Type-A/IP 20, length. 1 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1420168 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 452 (C-2-2017) |
| GTIN | 4046356548595 |
| Weight per Piece (excluding packing) | 68.100 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable structure | 2x2xAWG26/7 + 2xAWG20/19; S/FTP |
| Length of cable | 1 m |
| Degree of protection | IP20 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, flexible installation) |
|---|---|
| Degree of protection | IP20 (USB type A) |
| IP65 (M12 mini B) |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | Cu alloy |
| Contact surface material | Ni/Au |
| Outer sheath, material | PVC |
| External sheath, color | black |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (M12 mini B) | RD (+5 V) | 1 (USB type A) |
|---|---|
| 2 (M12 mini B) | WH (DATA-) | 2 (USB type A) | |
| 3 (M12 mini B) | GN (DATA+) | 3 (USB type A) | |
| 4 (M12 mini B) | N.C. | |
| 5 (M12 mini B) | BK (GND) | 4 (USB type A) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127269200eCl@ss 6.027269200eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1 m |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Black |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 1 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | Other |
