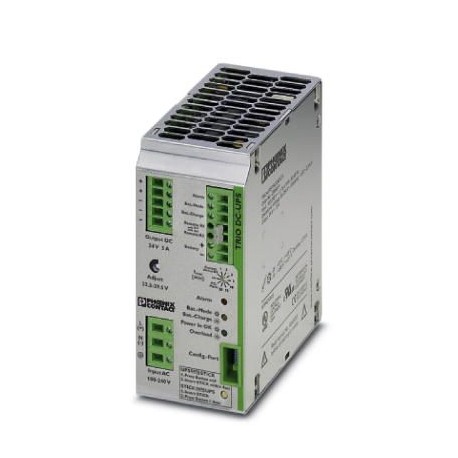

PHOENIX CONTACT TRIO-UPS/1AC/24DC/ 5 TRIO-UPS/1AC/24DC/ 5 2866611 PHOENIX CONTACT Uninterruptible power supply View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TRIO-UPS/1AC/24DC/ 5 2866611 PHOENIX CONTACT Uninterruptible power supply

TRIO-UPS/1AC/24DC/ 5

2866611

PHOENIX CONTACT

1 Pcs.

Uninterruptible power supply Uninterruptible power supply with integrated power supply. For AGM lead-acid energy storage MINI-BAT/24/DC/1.3 AH, QUINT-BAT/24DC 3.4 AH... 12 AH rated capacity. Input: single-phase, output: 24 V DC/5 A. Screw connection technology

Automation > UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866611
Packing unit1 pc
Catalog pagePage 300 (C-4-2017)
GTIN4046356311809
Weight per Piece (excluding packing)1,147.000 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width60 mm
Height130 mm
Depth118 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 55° C derating : 2.5%/K)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Max. permissible relative humidity (operation)95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range100 V AC ... 240 V AC
AC input voltage range85 V AC ... 264 V AC (Derating < 90 V AC: 2.5%V)
Input voltage range DC100 V DC ... 350 V DC (UL508: 100 ... 250 V)
Buffer timeadjustable: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; PC-Mode
Current consumption1.1 A (230 V AC, maximum)
1.8 A (120 V AC, maximum)
Inrush current limiting/I²t< 1.3 A2s
Mains bufferingsee diagram
Typical response time150 ms (230 V AC)
200 ms (120 V AC)
Power factor (cos phi)approx. 0.5
Protective circuitTransient surge protection Varistor
Input fuse, integrated6.3 A (slow-blow, internal)

Output data

Nominal output voltage24 V DC
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (Network operation; in the buffer mode, dependent on the battery voltage of 27.9 V DC ... 19.2 V DC)
Nominal output current (IN)5 A (-25 °C ... 55 °C)
Derating55 °C ... 70 °C (2.5%/K)
Output current limitmax. 6 A (Mains operation)
Control deviation< 1 % (change in load, static 10 % ... 90 %)
Efficiency> 88 % (230 V AC, network operation)
> 86 % (120 V AC, network operation)
> 86 % (Battery operation)
Residual ripple< 10 mVPP
Peak switching voltages nominal load< 25 mVPP
Connection in parallelYes, 2
Surge protection against internal surge voltages< 35 V DC
Feedback resistance35 V DC

General

IQ technologyno
Net weight1.1 kg
Memory mediumExternal, battery 1.3 Ah / 3.4 Ah / 7.2 Ah / 12 Ah
Operating mode
Insulation voltage input/output4 kV (type test)
2 kV (routine test)
Protection classI
MTBF (IEC 61709, SN 29500)
> 596000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3

Connection data for signaling

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3

Charging process

Charge characteristic curveI/U characteristic curve
Battery presence check/time interval60 s
Charge current0.2 A ... 1.5 A (Default 1.0 A)
End-of-charge voltage25 V DC ... 30 V DC (Default 27.6 V DC)
Temperature compensation0 mV/K ... 200 mV/K (42 mV/K by default)
Quality check of battery4 h ... 200 h (Default 12 h)
Deep discharge protection18 V DC ... 21 V DC (Default 19.2 V DC)
Alarm signaling threshold18 V DC ... 30 V DC (Default 20.4 V DC)

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 55011 (EN 55022)
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge6 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 2 GHz
Test field strength10 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range10 kHz ... 80 MHz
Voltage10 V
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipmentEN 50178
Standard – Limitation of mains harmonic currentsEN 61000-3-2
Shipbuilding approvalDNV GL (EMC B)
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Rail applicationsEN 50121-4

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2866611 Data networking products (EC000382)
Feature Name Feature Value
Input voltage (EF003840) 85 V
Output voltage (EF003933) 22.5 V
Voltage type (EF000187) AC/DC
Height (EF000040) 130 mm
Width (EF000008) 60 mm
Depth (EF000049) 118 mm
Weight (EF000167) 0.939 kg
Bridging time full load (EF000428) 3600 min
Input connection (EF009726) Other
