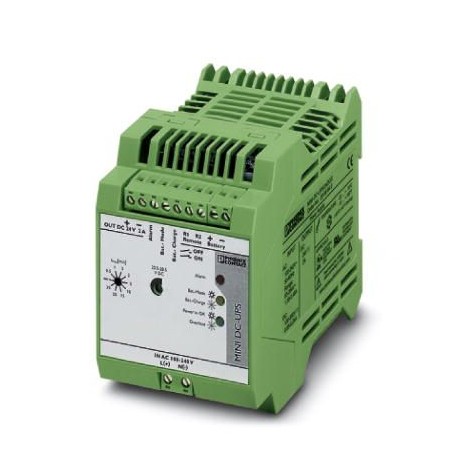

PHOENIX CONTACT MINI-DC-UPS/24DC/2 MINI-DC-UPS/24DC/2 2866640 PHOENIX CONTACT Uninterruptible power supply View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MINI-DC-UPS/24DC/2 2866640 PHOENIX CONTACT Uninterruptible power supply

MINI-DC-UPS/24DC/2

2866640

PHOENIX CONTACT

1 Pcs.

Uninterruptible power supply Uninterruptible power supply with integrated power supply, 2 A, in combination with MINI-BAT/24/DC 0.8 AH or 1.3 AH

Automation > UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866640
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 301 (C-4-2017)
GTIN4046356113533
Weight per Piece (excluding packing)495.500 g
Custom tariff number85371091
Country of originCN (China)

Dimensions

Width67.5 mm
Height99 mm
Depth107 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range100 V AC ... 240 V AC
AC input voltage range85 V AC ... 264 V AC
Input voltage range DC100 V DC ... 350 V DC
Buffer timeCan be set to: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; 30 min; permanent
Current consumption0.85 A (230 V AC)
1.5 A (120 V AC)
Inrush current limiting/I²t< 1.1 A2s
Mains bufferingsee diagram
Typical response time100 ms
Power factor (cos phi)approx. 0.5
Protective circuitVaristor
Input fuse, integrated3.15 A (slow-blow, internal)

Output data

Nominal output voltage24 V DC
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (normal mode; in the buffer mode, dependent on a battery voltage of 27.9 V DC ... 19.2 V DC)
Nominal output current (IN)2 A
Derating60 °C ... 70 °C (2.5%/K)
Output current limitmax. 3 A
Max. capacitive loadunlimited
Control deviation< 1 % (change in load, static 10 % ... 90 %)
Power loss nominal load max.15 W
Maximum power dissipation in no-load condition3.8 W
Efficiency> 83 %
Residual ripple< 50 mVPP
Peak switching voltages nominal load< 100 mVPP
Connection in parallelNo
Surge protection against internal surge voltages< 35 V DC
Feedback resistance35 V DC

General

IQ technologyno
Net weight0.45 kg
Memory mediumExternal, battery 0.8 Ah / 1.3 Ah
Insulation voltage input/output4 kV (type test)
2 kV (routine test)
Protection classII (in closed control cabinet)
MTBF (IEC 61709, SN 29500)> 753000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodPluggable COMBICON screw connections
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3

Connection data, output

Connection methodPluggable COMBICON screw connections
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3

Connection data for signaling

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 55011 (EN 55022)
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge6 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 2 GHz
Test field strength10 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range10 kHz ... 80 MHz
Voltage10 V
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
EN 61558-2-17
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipmentEN 50178
UL approvalsUL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Rail applicationsEN 50121-4

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2866640 Data networking products (EC000382)
Feature Name Feature Value
Input voltage (EF003840) 100 V
Output voltage (EF003933) 22.5 V
SNMP (EF005284) No
Voltage type (EF000187) DC
Height (EF000040) 99 mm
Width (EF000008) 67.5 mm
Depth (EF000049) 107 mm
Weight (EF000167) 0.447 kg
Bridging time full load (EF000428) 1200 min
Input connection (EF009726) Other
