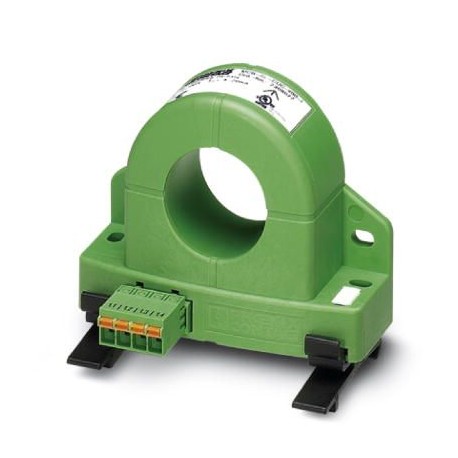

MCR-SL-CUC-400-I 2308072 PHOENIX CONTACT Universal current transducer

MCR-SL-CUC-400-I

2308072

PHOENIX CONTACT

1 Pcs.

Universal current transducer Universal current converter for the measurement of direct, alternating and distorted currents, 0 input current ... 400 A, output 4 ... 20 mA

Automation > Current value transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2308072
Packing unit1 pc
Catalog pagePage 241 (C-5-2017)
GTIN4046356566568
Weight per Piece (excluding packing)289.000 g
Custom tariff number90303330
Country of originCN (China)

Dimensions

Primary round conductor (diameter)32 mm
Width90 mm
Height33.8 mm
Depth85 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 65 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Number of inputs1
Input current range0 A ... 400 A
Overload capacity2.5 x IIN
Frequency measuring range20 Hz ... 6000 Hz (0 Hz)
Connection methodCable design: 32 mm diameter
Rated frequency: Standard converter20 Hz ... 6000 Hz
Primary rated current Ipn400 A

Output data

Output nameCurrent output
Current output signal4 mA ... 20 mA
Max. output current< 25 mA
Load/output load current output< 300 Ω
Connection methodScrew connection

Switching output

Output nameNo switching output

Power supply

Nominal supply voltage24 V DC
Supply voltage range20 V DC ... 30 V DC
Max. current consumption(30 + IOUT) mA
Power consumption1.65 W

Connection data

Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Stripping length10 mm

General

Accuracy class1
Maximum transmission error
Temperature coefficient, typical0.02 %/K (0 ... 60 °C)
0.04 %/K (-40 °C ... 65 °C)
Linearity error
Step response (10-90%)150 ms
Overvoltage categoryIII
Degree of pollution2
Rated insulation voltage300 V AC
Test voltage input/output3.5 kV (50 Hz, 1 min.)
Test voltage input/power supply3.5 kV (50 Hz, 1 min.)
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2
Colorgreen
Housing materialFrianyl B63 V0 GV30
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Standards and Regulations

Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2308072 Sensors (EC002475)
Feature Name Feature Value
Initial value measuring range current (EF008198) 0 A
End value measuring range current (EF008266) 400 A
Type of analogy output (EF003958) 4-20 mA
Integrated configuration function (EF003064) No
With switching output (EF005225) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
