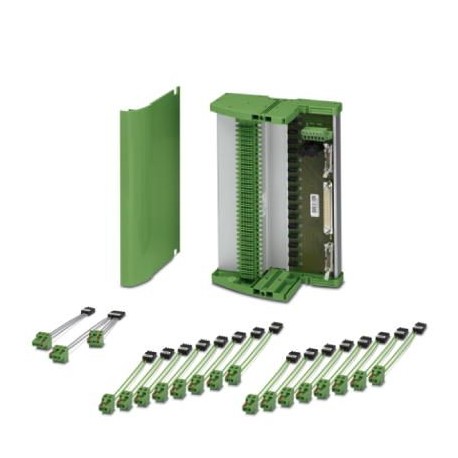

TC-D37SUB-AIO16-EX-PS-UNI 2902932 PHOENIX CONTACT Module carrier
TC-D37SUB-AIO16-EX-PS-UNI
2902932
PHOENIX CONTACT
1 Pcs.
Module carrier
Universal termination carrier for connecting 16 MACX Analog Ex i separation amplifiers to digital or analog input/output cards, via D-SUB plug-in connectors, 37 poles (1:1 connection), with HART-Multiplexer connection
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2902932 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 165 (C-5-2017) |
| GTIN | 4046356697989 |
| Weight per Piece (excluding packing) | 444.440 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
General
| Nominal voltage UN | < 30 V DC (Per signal/channel) |
|---|---|
| Max. permissible current | 23 mA (Signal/channel) |
| Degree of protection | IP00 |
Supply
| Designation | Power module |
|---|---|
| Note | Power supply via 2904673 TC-MACX-MCR-PTB power supply and error signaling module. |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC |
| Input current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 50 V DC (0.3 A) |
| Fuse | 2x 2.5 A on PCB, slow-blow (replaceable) |
| Status display | 1 x red LED (error) |
| 2x green LEDs (PWR1 and PWR2) |
Connection 1
| Connection name | Power supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Connection 3
| Connection name | X11 |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Note | For connecting 16 HART devices to HART multiplexers |
Connection 4
| Connection name | X12 |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Note | For connecting a second TC-D37SUB-AIO16-EX-PS-UNI (additional 16 HART channels) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C (Please observe module specifications) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| Maximum altitude | ≤ 2000 m |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Flammability rating according to UL 94 | V0 |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
