View larger
Images are for illustrative purposes only. Please refer to data sheet for details

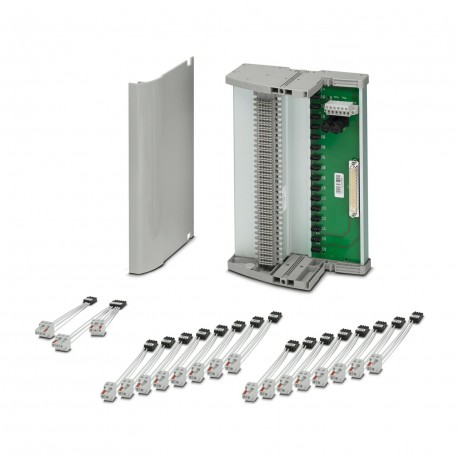

TC-D37SUB-ADIO16-EX-P-UNI 2924854 PHOENIX CONTACT Module carrier
TC-D37SUB-ADIO16-EX-P-UNI
2924854
PHOENIX CONTACT
1 Pcs.
Module carrier
Universal termination carrier for connecting 16 MACX Analog Ex i separation amplifiers to digital or analog I/O cards, via D-SUB pluggable connectors, 37 poles (1:1 connection)
Universal termination carrier for connecting 16 MACX Analog Ex i signal conditioners to digital or analog I/O cards, via D-SUB connector, 37-pos. (1:1 connection)
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| Product type | Module carrier |
| Data management status | |
| Article revision | 06 |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible current | 1 A (Signal/channel) |
| Nominal voltage UN | < 30 V DC (Per signal/channel) |
| Air clearances and creepage distances | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Supported controller universal | |
| Suitable I/O card | universal |
| Supply | |
| Designation | Power module |
| Note | Power supply via 2904673 TC-MACX-MCR-PTB power supply and error signaling module. |
| Fuse | 2x 2.5 A on PCB, slow-blow (replaceable) |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC |
| Input current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact switching type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 50 V DC (0.3 A) |
| 30 V DC (2 A) | |
| 33 V AC (2 A) | |
Connection data
| Power supply | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Controller level | |
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Signaling
| Status display | 1 x red LED (error) |
| 2x green LEDs (PWR1 and PWR2) |
Dimensions
| Width | 242 mm |
| Height | 170 mm |
| Depth | 159.5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 60 °C (Please observe module specifications) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
Approvals
| ATEX | |
| Identification | II 3 G Ex nA IIC T4 Gc X |
| UKCA Ex (UKEX) | |
| Identification | II 3 G Ex nA IIC T4 Gc |
| Certificate | PxCIF21UKEX2924854X |
| UL, USA/Canada | |
| Identification | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC | |
Standards and regulations
| Air clearances and creepage distances | |
| Standards/regulations | EN 60664-1 |
Mounting
| Mounting type | DIN rail mounting |
| Assembly note | No end clamp |
| Mounting position | vertical, horizontal |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 37 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 159.5 mm |
| Width (EF000008) | 242 mm |
| Height (EF000040) | 170 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
