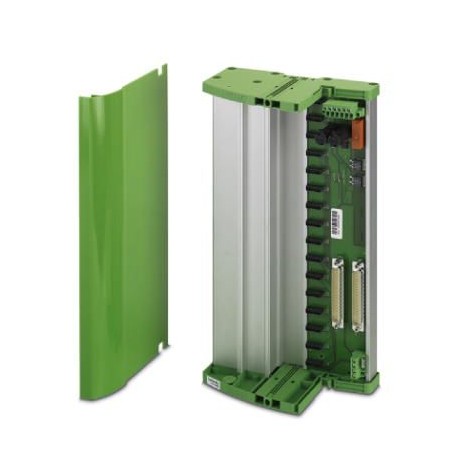

PHOENIX CONTACT TC-2D37SUB-DO16-ESD-AR-UNI TC-2D37SUB-DO16-ESD-AR-UNI 2902913 PHOENIX CONTACT Module carrier View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TC-2D37SUB-DO16-ESD-AR-UNI 2902913 PHOENIX CONTACT Module carrier

TC-2D37SUB-DO16-ESD-AR-UNI

2902913

PHOENIX CONTACT

1 Pcs.

Module carrier Universal termination carrier for redundant connection of 16 PSR-FSP modules to digital output cards via two D-SUB pluggable connectors, 37 poles (1:1 connection). Solution for Emergency Shut Down (ESD) applications.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2902913
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 289 (C-6-2017)
GTIN4046356703703
Weight per Piece (excluding packing)1,521.000 g
Custom tariff number85369010
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

General

Nominal voltage UN< 50 V DC (Per signal/channel)
Max. permissible current1 A (Signal/channel)
Degree of protectionIP00

Supply

DesignationDevice supply
Input voltage range21.1 V DC ... 26.4 V DC
Input current≤ 2 A
Redundant supplyyes, decoupled from diodes
Polarization and surge protectionYes
Output nameSwitching output
Contact type1 N/C contact (alarm = open)
Fuse2.5 A on PCB, slow-blow (replaceable)
Status display2 x red LED (error)
2x green LEDs (PWR1 and PWR2)

Connection 1

Connection namePower supply
Connection methodScrew connection
Stripping length7 mm
Number of connections1
Number of positions6
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections2
Number of positions37

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Shock15g, according to IEC 60068-2-27
Vibration (operation)2g, according to IEC 60068-2-6
Maximum altitude≤ 2000 m

Dimensions

Width304 mm
Height170 mm
Depth160 mm

Standards and Regulations

DesignationAir clearances and creepage distances
Standards/regulationsDIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.5 kV
InsulationBasic insulation
Flammability rating according to UL 94V0
Shock15g, according to IEC 60068-2-27
Vibration (operation)2g, according to IEC 60068-2-6
UL, USA/CanadaUL 61010 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2902913 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 37
Rated voltage (EF000228) 50 V
Rated current (EF000227) 1 A
Depth (EF000049) 159.5 mm
Width (EF000008) 304 mm
Height (EF000040) 170 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
