View larger
Images are for illustrative purposes only. Please refer to data sheet for details

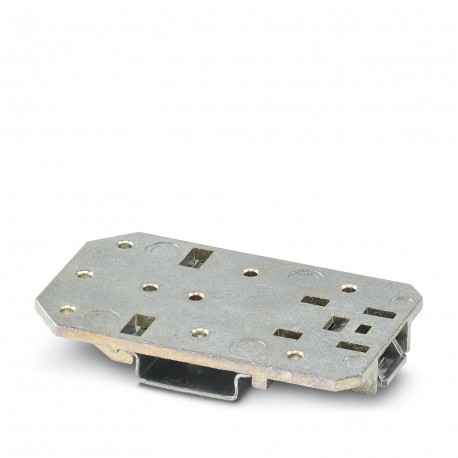

UTA 89 2853970 PHOENIX CONTACT DIN rail adapter
UTA 89
2853970
PHOENIX CONTACT
5 Pcs.
DIN rail adapter
Universal rail adapter for screwing on distribution devices
Universal DIN rail adapter, for screwing on switchgear
Automation > DIN-rail adapter
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | DIN rail adapter |
| Housing type | DIN rail adapter |
| Product family | UTA |
| Type | Fastening holes provided, integrated foot catch |
| Data management status | |
| Article revision | 02 |
Dimensions
| Width | 52 mm |
| Height | 89 mm |
| Depth | 9.6 mm |
Material specifications
| Housing material | Zinc die-cast |
Environmental and real-life conditions
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Type of fastening (EF002442) | Other |
| Material (EF002169) | Metal |
