View larger
Images are for illustrative purposes only. Please refer to data sheet for details

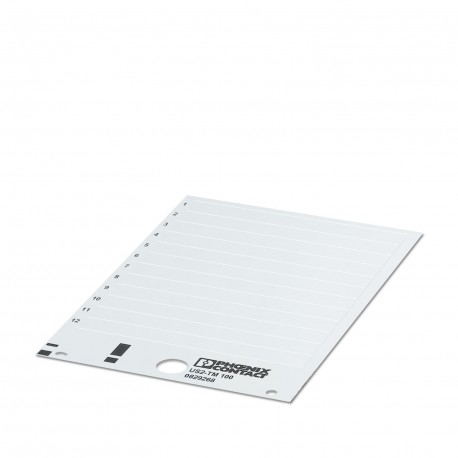

US2-TM 100 0829268 PHOENIX CONTACT Marker for terminal blocks
US2-TM 100
0829268
PHOENIX CONTACT
10 Pcs.
Marker for terminal blocks
UniSheet markings for Wago terminals, labelable with THERMOMARK CARD, 12 units, color: white
Automation > Labelling for terminal block
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0829268 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 175 (C-3-2017) |
| GTIN | 4046356559591 |
| Weight per Piece (excluding packing) | 10.080 g |
| Custom tariff number | 39204910 |
| Country of origin | DE (Germany) |
General
| Color | white |
|---|---|
| Type | flat |
| Components | Silicone-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| PVC | |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 12 |
| Number of individual labels per row | 1 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | snap into tall marker groove |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
