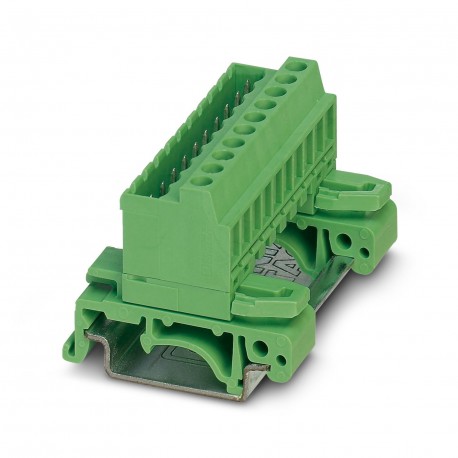

PHOENIX CONTACT UMSTBVK 2,5/22-G-5,08 UMSTBVK 2,5/22-G-5,08 1788318 PHOENIX CONTACT Plug-in block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UMSTBVK 2,5/22-G-5,08 1788318 PHOENIX CONTACT Plug-in block

UMSTBVK 2,5/22-G-5,08

1788318

PHOENIX CONTACT

50 Pcs.

Plug-in block Rail connector, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 22, number of rows: 1, number of poles: 22, number of connections: 22, article family: UMSTBVK 2.5/.. -G, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Rail, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, fixing type: without, packaging type: boxed DIN rail connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 22, number of rows: 1, number of positions: 22, number of connections: 22, product range: UMSTBVK 2,5/..-G, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard

Automation > Feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDIN rail connector
Product familyUMSTBVK 2,5/..-G
Product lineCOMBICON Connectors M
TypeDIN rail mounting
Number of positions22
Pitch5.08 mm
Number of connections22
Number of rows1
Number of potentials22
Mounting flangewithout
Solder pins per potential1
Data management status
Article revision04
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Rated voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
TypeDIN rail mounting
Connector systemCOMBICON MSTB 2,5
Nominal cross section2.5 mm²
Contact connection typePin
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodScrew connection with tension sleeve
Connection direction of the conductor to plug-in direction0 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Cylindrical gauge a x b / diameter2.8 mm x 2.0 mm / 2.4 mm
Stripping length7 mm
Drive form screw headSlotted (L)
Tightening torque0.5 Nm ... 0.6 Nm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface contact area (top layer)Tin (5 - 7 µm Sn)
Metal surface contact area (middle layer)Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch5.08 mm
Width [w]113.26 mm
Height [h]42.5 mm
Length [l]34.5 mm
Electrical tests
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
