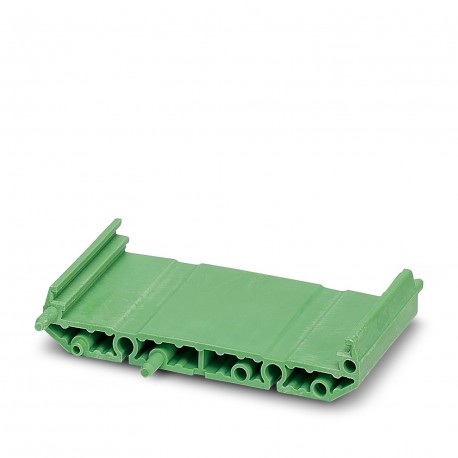

UMK-BE 45 GROSSVERPACKUNG 2978033 PHOENIX CONTACT Support for electronic assembly, a base element for plug-i..
UMK-BE 45 GROSSVERPACKUNG
2978033
PHOENIX CONTACT
500 Pcs.
Support for electronic assembly, a base element for plug-in module
Electronic mounting bracket, plug-in module base element
Electronics enclosures, basic element for plug-in module
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | Lower installation case |
| Enclosure type | Profile |
| Enclosure Series | UMK |
| Product Family | UMK BE |
| type | Module width 45 mm, since the housing can be opened upwards, models with a real profile height are also possible |
| Execution | Connector module base |
| Ventilation opening available | no |
| Depth | 15.5 mm |
| length | 45 mm |
| External measurements | |
| Profile thickness (external) | 77 mm |
| Internal measurements | |
| Profile width (internal) | 72.2 mm |
| Color (Case) | green (RAL 6021) |
| Combustibility class according to UL 94 | V2 |
| Housing Material | Polyamide |
| Surface Finish | untreated |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Relative humidity (transport and storage) | 80 % |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 72.2 mm |
| Depth (EF000049) | 15.5 mm |
