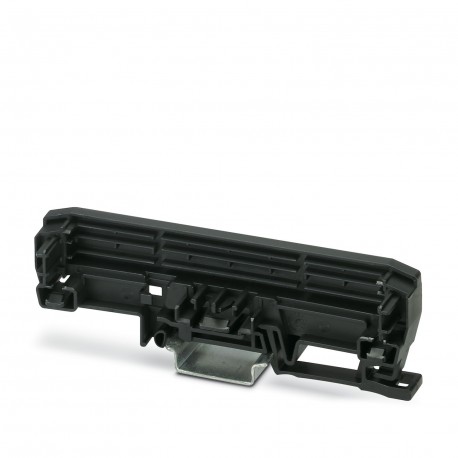

UM-PRO 108 COVER/BUS-R BK 2202857 PHOENIX CONTACT Press-drawn section housings, Lateral element (right), wid..

UM-PRO 108 COVER/BUS-R BK

2202857

PHOENIX CONTACT

10 Pcs.

Press-drawn section housings, Lateral element (right), width: 19.5 mm, color: black (9005), height: 127.8 mm Extruded profile housings, Rail mounting/wall mounting (with optional fixing flange), Side element (right) with bus break and DIN rail mounting foot, colour: black (9005), width: 19.5 mm, height: 127.8 mm, depth: 39.45 mm Press-drawn section housings, DIN rail mounting/wall mounting (with optional mounting flange), Side element (right) with bus breakout and with mounting foot for the DIN rail, width: 19.5 mm, height: 127.8 mm, depth: 39.45 mm

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typePanel mounting base side part
Housing typePress-drawn section housings
Housing seriesUM-PRO
Product familyUM-PRO 108
TypeSide element (right) with bus breakout and with mounting foot for the DIN rail
Data management status
Article revision00
Dimensions
Width19.5 mm
Height127.8 mm
Depth39.45 mm
Depth from top edge of DIN rail32.45 mm
PCB design
PCB thickness1.4 mm ... 1.8 mm
Material specifications
Color (Housing)black (RAL 9005)
Flammability rating according to UL 94V0
Housing materialPolyamide
Surface characteristicsuntreated
Environmental and real-life conditions
Glow-wire test
SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s
Thermal stability / ball thrust test
SpecificationIEC 60695-10-2:2014-02
Temperature125 °C
Test duration1 h
Force20 N
Mechanical strength / tumbling barrel
SpecificationIEC 60068-2-31:2008-05
Height of fall50 cm
Frequency50
Degree of protection (IP code)
SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Relative humidity (storage/transport)80 %
PCB data
Type of PCB mountInsertion/securing with additional elements
Thickness of the PCB1.4 mm ... 1.8 mm
Mounting
Mounting typeDIN rail mounting/wall mounting (with optional mounting flange)
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 2202857 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Open
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Black
RAL-number (EF000116) 9005
Width (EF000008) 19.5 mm
Height (EF000040) 127.8 mm
Depth (EF000049) 39.45 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
