View larger
Images are for illustrative purposes only. Please refer to data sheet for details

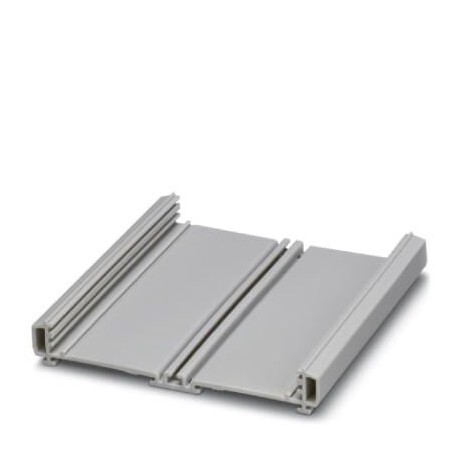

UM-BASIC 72 L9,69CM KMGY 1017443 PHOENIX CONTACT Press-drawn section housings, Lower part, profile width (in..
UM-BASIC 72 L9,69CM KMGY
1017443
PHOENIX CONTACT
100 Pcs.
Press-drawn section housings, Lower part, profile width (internal): 72 mm, length: 96.9 mm, color: light gray (7035)
Extruded profile housings, Locking with side elements, locking with foot element, Basic profile, profile width (inside): 72 mm, length: 96.9 mm, depth: 19.8 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product properties
| Brief article description | Profile |
|---|---|
| Type | UM-BASIC 72 L9,69CM KMGY |
| Order No. | 1017443 |
| Housing type | Press-drawn section housings |
| Type | Lower part |
| Mounting type | Latching with side elements, latching with foot element |
Material specifications
| Housing material | PVC |
|---|---|
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Ambient temperature (operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 95 % |
PCB specifications
| Mounting position | parallel to the DIN rail |
|---|---|
| Type of PCB mount | Insertion/securing with additional elements |
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | Refer to the data sheet for the range in the download area. |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 96.9 mm |
| Height (EF000040) | 72 mm |
| Depth (EF000049) | 19.8 mm |
