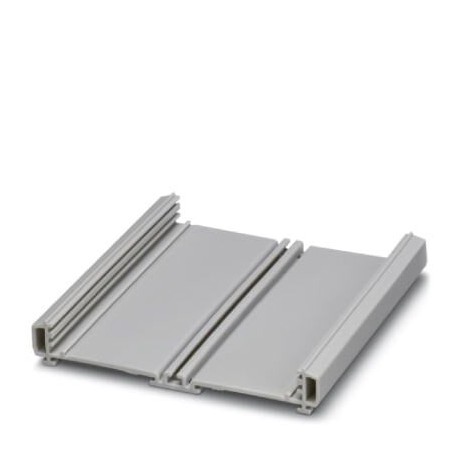

PHOENIX CONTACT UM-BASIC 108-PROFIL L 90,5 KMGY UM-BASIC 108-PROFIL L 90,5 KMGY 1091492 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM-BASIC 108-PROFIL L 90,5 KMGY 1091492 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile..

UM-BASIC 108-PROFIL L 90,5 KMGY

1091492

PHOENIX CONTACT

50 Pcs.

Press-drawn section housings, Basic profile, profile width (internal): 108 mm, length: 905 mm, color: light gray (7035) Extruded profile housings, Locking with side elements, locking with foot element, Basic profile, profile width (inside): 108 mm, length: 905 mm, depth: 19.8 mm

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1091492
Packing unit1
GTIN4055626904733
Custom tariff number39162000

Product properties

Brief article descriptionProfile
TypeUM-BASIC 108-PROFIL L 90,5 KMGY
Order No.1091492
Housing typePress-drawn section housings
TypeBasic profile
Mounting typeLatching with side elements, latching with foot element
Back to top

Dimensions

Profile PCB width (selectable):108 mm [UM108]
Depth [ d ]19.8 mm
Back to top

Material specifications

Housing materialPVC
Color (RAL)light gray (7035)
Flammability rating according to UL 94V0
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 50 °C
Ambient temperature (assembly)-5 °C ... 50 °C
Ambient temperature (operation)-15 °C ... 50 °C (depending on power dissipation)
Relative humidity (storage/transport)95 %
Back to top

PCB specifications

Mounting positionparallel to the DIN rail
Type of PCB mountInsertion/securing with additional elements
Back to top

General information

Type of noteAssembly instruction:
NoteRefer to the data sheet for the range in the download area.
Back to top

Packaging specifications

Pieces per package10
Denomination packing unitsPcs.
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127182701
eCl@ss 4.027180401
eCl@ss 4.127180401
eCl@ss 5.027180506
eCl@ss 5.127180500
eCl@ss 6.027400500
eCl@ss 7.027182701
eCl@ss 8.027182701
eCl@ss 9.027182701
Back to top

ETIM

ETIM 2.0EC001031
ETIM 3.0EC001031
ETIM 4.0EC000386
ETIM 5.0EC002779
ETIM 6.0EC002779
ETIM 7.0EC002779
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1091492 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 905 mm
Height (EF000040) 108 mm
Depth (EF000049) 19.8 mm
