UM-BASIC 108 100MM DEV-KIT KMGY 2202528 PHOENIX CONTACT Electronic housing

Name: UM-BASIC 108 100MM DEV-KIT KMGY 2202528 PHOENIX CONTACT Electronic housing
Brand: PHOENIX CONTACT
SKU: 2202528

Reference: UM-BASIC 108 100MM DEV-KIT KMGY

Code: 2202528

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

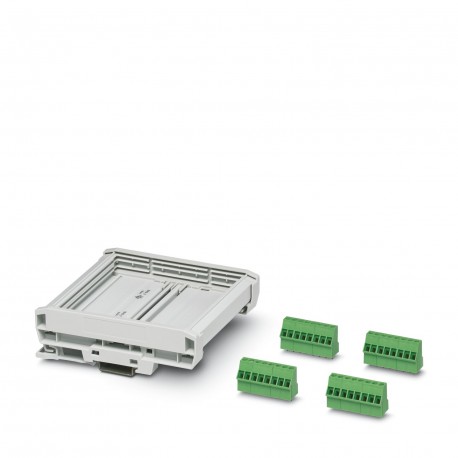

Electronic housing DEV-KIT UM-BASIC: includes 1 UM-BASIC 100MM profile housing and card terminals (SMKDS), supplied in individual pieces

Categories:
Automation > Electronic enclosure
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

More info

▲

Orderkey	2202528
Packing unit	1 pc
GTIN	4055626141787
Weight per Piece (excluding packing)	184.400 g
Custom tariff number	85369010
Country of origin	DE (Germany)

Housing type	Press-drawn section housings
Housing material	PVC / PA
Color (RAL)	light gray

Ambient temperature (operation)	-15 °C ... 50 °C (depending on power dissipation)

Flammability rating according to UL 94	V0

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

ETIM for 2202528 Cabinets and enclosures (EC001031)
Feature Name	Feature Value
Material (EF002169)	Other
Colour (EF000007)	Grey
