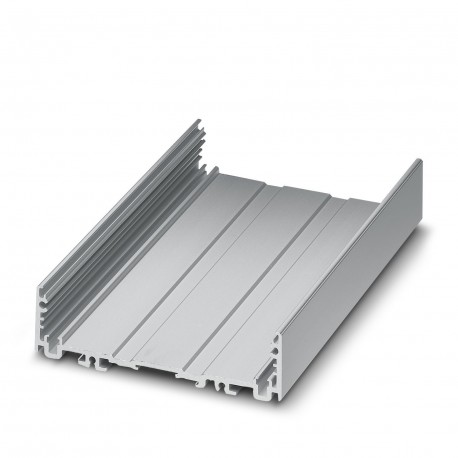

PHOENIX CONTACT UM-ALU 4-100,5 PROFILE 80 UM-ALU 4-100,5 PROFILE 80 1110467 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile width.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM-ALU 4-100,5 PROFILE 80 1110467 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile width..

UM-ALU 4-100,5 PROFILE 80

1110467

PHOENIX CONTACT

50 Pcs.

Press-drawn section housings, Basic profile, profile width (internal): 100.5 mm, length: 80 mm Extruded profile housings, Screwed mounting, Basic profile, colour: aluminium colour, profile width (inside): 100.5 mm, profile width (outside): 105 mm, length: 80 mm, depth: 29.4 mm Press-drawn section housings, Screw mounting, Basic profile, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 80 mm, depth: 29.4 mm

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeComponent housing lower part
Housing typePress-drawn section housings
Housing seriesUM-ALU
Product familyUM-ALU 4-100,5
TypeBasic profile
Ventilation openings presentno
Data management status
Article revision00
Dimensions
Dimensional drawingyqwnimkxtf.jpg
Depth29.4 mm
Depth from top edge of DIN rail25.5 mm
Length80 mm
External dimensions
Profile width (external)105 mm
Internal dimensions
Profile width (internal)100.5 mm
PCB design
PCB thickness1.44 mm ... 2 mm
Material specifications
Color (Housing)Aluminum color
Housing materialAluminum
Surface characteristicsanodized
Environmental and real-life conditions
Ambient conditions
Max. IP code to attainIP40
Ambient temperature (operation)-40 °C ... 105 °C
PCB data
Number of PCB holders2
Type of PCB mountSlot
Thickness of the PCB1.44 mm ... 2 mm
Mounting
Mounting typeScrew mounting
Mounting positionparallel to the DIN rail
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 1110467 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Aluminium
Surface finishing (EF006569) Other
Colour (EF000007) Other
Width (EF000008) 80 mm
Height (EF000040) 100.5 mm
Depth (EF000049) 29.4 mm
