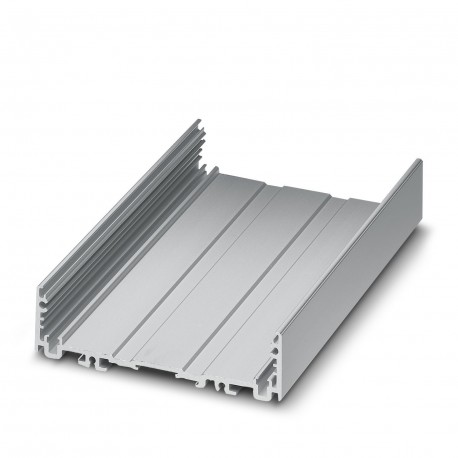

UM-ALU 4-100,5 PROFIL 40 2202071 PHOENIX CONTACT Electronic housing
UM-ALU 4-100,5 PROFIL 40
2202071
PHOENIX CONTACT
1 Pcs.
Electronic housing
Extruded profile boxes, Screwed mounting, Basic profile, colour: aluminium colour, profile width (inside): 100.5 mm, profile width (outside): 105 mm, length: 40 mm, depth: 29.4 mm
Press-drawn section housings, Screw mounting, Basic profile, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 40 mm, depth: 29.4 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Component housing lower part |
| Housing type | Press-drawn section housings |
| Housing series | UM-ALU |
| Product family | UM-ALU 4-100,5 |
| Type | Basic profile |
| Ventilation openings present | no |
Dimensions
| Dimensional drawing |  |
| Depth | 29.4 mm |
| Depth from top edge of DIN rail | 25.5 mm |
| Length | 40 mm |
| External dimensions | |
| Profile width (external) | 105 mm |
| Internal dimensions | |
| Profile width (internal) | 100.5 mm |
| PCB design | |
| PCB thickness | 1.44 mm ... 2 mm |
Material specifications
| Color (Housing) | Aluminum color |
| Housing material | Aluminum |
| Surface characteristics | anodized |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP40 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
PCB data
| Number of PCB holders | 3 |
| Type of PCB mount | Slot |
| Thickness of the PCB | 1.44 mm ... 2 mm |
Mounting
| Mounting type | Screw mounting |
| Mounting position | parallel to the DIN rail |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 100.5 mm |
| Depth (EF000049) | 29.4 mm |
