View larger
Images are for illustrative purposes only. Please refer to data sheet for details

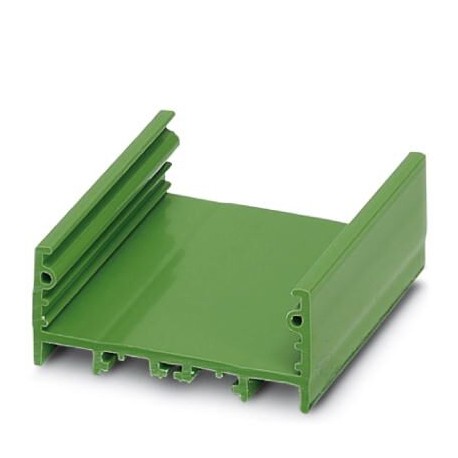

UM 45-PROFIL 18CM 1112627 PHOENIX CONTACT Press-drawn section housings, Basic profile, profile width (intern..
UM 45-PROFIL 18CM
1112627
PHOENIX CONTACT
1000 Pcs.
Press-drawn section housings, Basic profile, profile width (internal): 41.85 mm, length: 180 mm, height: 44.8 mm
Extruded profile housings, Basic profile, profile width (inside): 41.85 mm, profile width (outside): 44.8 mm, length: 180 mm, height: 44.8 mm, depth: 18.95 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Back to top
Back to top
Back to top
Product properties
| Brief article description | Profile |
|---|---|
| Type | UM 45-PROFIL 18CM |
| Order No. | 1112627 |
| Housing type | Press-drawn section housings |
| Type | Basic profile |
Dimensions
| Dimensional drawing |  |
|---|---|
| Length | 180 mm |
| Profile width (external) | 44.8 mm |
| Profile width (internal) | 41.85 mm |
| Height | 44.8 mm |
| Depth | 18.95 mm |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Width (EF000008) | 180 mm |
| Height (EF000040) | 44.8 mm |
| Depth (EF000049) | 18.95 mm |
