View larger
Images are for illustrative purposes only. Please refer to data sheet for details

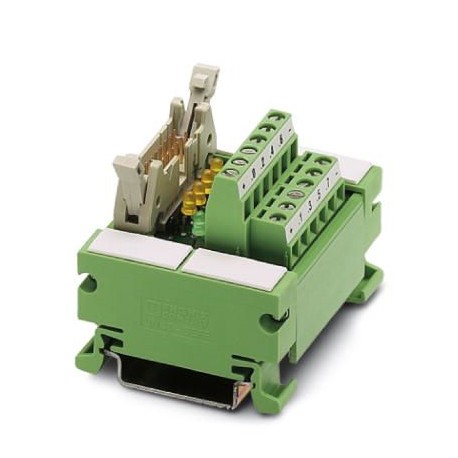

UM 45-FLK14/LA/PLC 2962492 PHOENIX CONTACT Passive module
UM 45-FLK14/LA/PLC
2962492
PHOENIX CONTACT
1 Pcs.
Passive module
VARIOFACE-COMPACT-LINE, 8-channel interconnect module, with light indication, for installation on the NS 35/7.5 rail, screw connection
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2962492 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 199 (IF-2007) |
| GTIN | 4017918087197 |
| Weight per Piece (excluding packing) | 44.160 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 30 V DC |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Max. permissible current (separate power supply) | 3 A |
| Number of positions | 14 |
| Status display | Yellow LED |
| Mounting position | any |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Number of positions | 14 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | IEC 60664 |
| DIN EN 50178 | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 14 |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 50.5 mm |
| Width (EF000008) | 57.8 mm |
| Height (EF000040) | 45 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
